0805 Series / B170 Series Single Color Led Light Emitting Diode With Small Package

0805 Series / B170 Series  Single  Color  Led Light Emitting Diode With Small Package
0805 Series / B170 Series  Single  Color  Led Light Emitting Diode With Small Package 0805 Series / B170 Series  Single  Color  Led Light Emitting Diode With Small Package

Large Image :  0805 Series / B170 Series Single Color Led Light Emitting Diode With Small Package

Product Details:
Place of Origin: china
Brand Name: Refond
Certification: Rohs
Model Number: 0805 single Color
Payment & Shipping Terms:
Minimum Order Quantity: 4K
Price: Negotiable
Packaging Details: 4000pcs/reel
Detailed Product Description
Name: B170 Type: 0805
View Angle: 140 Degree Voltage: 1.8 - 3.4V
Color: White / Green / Blue / Yellow / Red ESD: 2000V
Size: 2.0 * 1.25 * 0.7mm Driving Current: 20 MA
High Light:

smd led diode

,

light emission diode

0805 Series / B170 Series Single Color Led Light Emitting Diode With Small Package



Feature :

1. Low power consumption,high efficiency, long lifetime.

2. Reliability: Superior to the traditional lattice modules.

3. High temperature resistance, anti-yellowing resistance and UV resistance chip bonding glue .

4. Lead free, RoHS-compliant.

5. Extremely wide viewing angle ,140 degree
6.Suitable for all SMT assembly and solder process.
7. High temperature resistance, yellowing resistance and UV resistance chip bonding glue.
8. Moisture sensitivity level: 3.
9.Package:3000pcs/reel.

10. Lead free, RoHS-compliant.

11. Cover all colors

Description :
The color LED which was fabricated using a yellow / green / orange / blue chip .
Application :

1. The power signal indicator.

2. Network equipment:the signal.

3. Printer: power signal indicator.

4. The projector: power indicator.

5. Small size LED backlight.

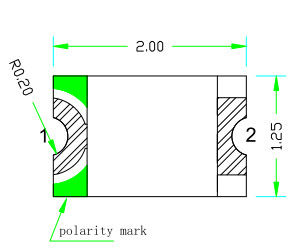

Package and size :0805 Series / B170 Series  Single  Color  Led Light Emitting Diode With Small Package 0




Electrical / Optical Characteristics at Ts=25°C



Part No. IF (mA) VF (V) IV (mcd) X/Y WD(nm) View angle
RF-WNB170DS-DD 20 3.1 600 0.32/0.33   140°
RF-RUB170TS-BD 20 2 60   630 140°
RF-GSB170TS-BC 20 2 45   570 140°
RF-BNB170TS-CE 20 3.1 160   470 140°
RF-YUB170TS-AE 20 2 150   590 140°
RF-GNB170TS-CF 20 3.1 560   522 140°


Absolute Maximum Ratings at Ts=25°C

Parameter Symbol Rating Units
Power Dissipation Pd 105 mW
Forward Current IF 30 mA
Peak Forward Current IFP 60 mA
Reverse Voltage VR 5 V
Electrostatic Discharge ESD 1000/2000 V
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +85
junction temperature Tj 95

Note:

1. 1/10 Duty cycle, 0.1ms pulse width.

2. The above forward voltage measurement allowance tolerance is 0.1V.

3. The below color coordinates measurement allowance tolerance is 0.003.

4. the above luminous flux measurement allowance tolerance ±10%.

5. Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
6. All measurements were made under the standardized environment of Refond.

7.When the LEDs are in operation the maximum current should be decided after measuring the package temperature,junction temperature should not exceed the maximum rate.LED
