Product Details:
Payment & Shipping Terms:
|
| Certification: | CE,ROHS FCC | Produce Name: | LED Edge Light |
|---|---|---|---|
| Part No: | PS-C401 | Working Voltage: | DC110-280V |
| LED Source: | SMD3030 | Power /piece: | 11W |
| Lm/Heart: | 130lm | Length: | 500mm/1000mm |
| LED Qty: | 9pcs | IP Grade: | IP65 |
| Beam Angle: | 10x60° | PCB Thickness: | 1.2mm |
| High Light: | 130LM/W LED Edge Light Strip,SMD3030 LED Edge Light Strip,130lm Constant Current LED Strip |
||

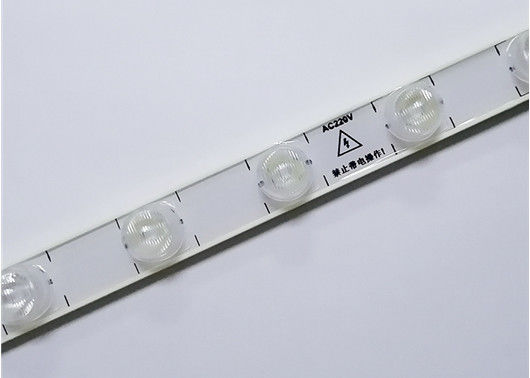

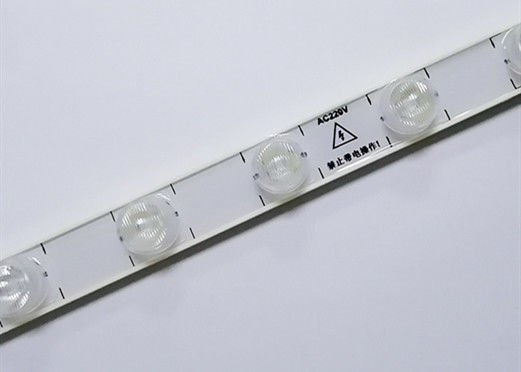

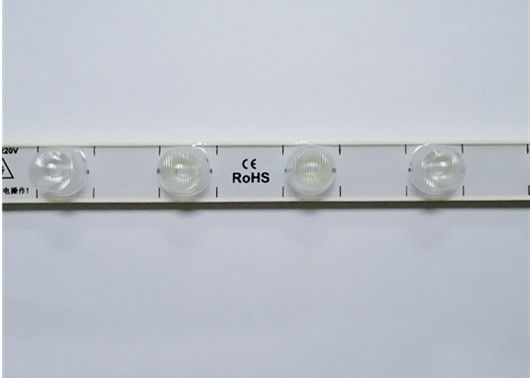

LED Edge Light Bar High Power Constant Current Side Light Strip 220V 130LM /W
Product feature,
1. Ac110v-280v mains power input, no switching power supply,constant current IC drive,
high efficiency, no strobe, good brightness
consistency.
2. The use of fire retardant cover, cover the electronic components, to provide product safety.
3. The light source adopts SMD3030, packaging wafer 14*28 lightemitting chip three, high
brightness, low light decay, good color, long
life, good stability.
4. An optical lens of 10X60° is adopted to scatter light from twodirections, ensuring the
uniformity of the light source, no macula, and
the irradiation distance up to 1.5m.
5. High thermal conductivity aluminum substrate with a thickness of 1.2mm provides
reliable heat dissipation for light source and improves
product life.
6. 3000W without power continuation, high power efficiency and easy installation.
| Part No. | CCT | Working voltage | LED source | W/pcs | Lm/Heart | Length(mm) | LED Qty |
| PS-C401-9D-W | 7000-8000K | DC110-280 | SMD 3030 | 11 | 130 | 500 | 9pcs |
| PS-C401-18D-W | 7000-8000K | DC110-280 | SMD 3030 | 22 | 130 | 1000 | 18pcs |
| PS-C401-9D-C | 9000-12000K | DC110-280 | SMD 3030 | 11 | 130 | 500 | 9pcs |
| SN-C401-18D-C | 9000-12000K | DC110-280 | SMD 3030 | 22 | 130 | 1000 | 18pcs |
