Product Details:
Payment & Shipping Terms:
|
| Certification: | CE,ROHS FCC | PCB Thickness: | 1.2mm |
|---|---|---|---|
| Part No: | PS-B107 | Beam Angle: | 175° |
| Color Temperature: | 6500K | Lm/Heart: | 135lm |
| Length: | 248mm/495mm/742mm/990mm | LED Qty: | 6pcs |
| Protection Grade: | IP33 | Produce Name: | LED Backlight Bar |
| Working Voltage: | DC24V | Warranty: | 3 Years |
| Application: | Led Advertising Lightbox | ||
| High Light: | Osram 3030 LED Backlight Bar,6500K LED Backlight Bar,IP33 Led Advertising Bar |
||

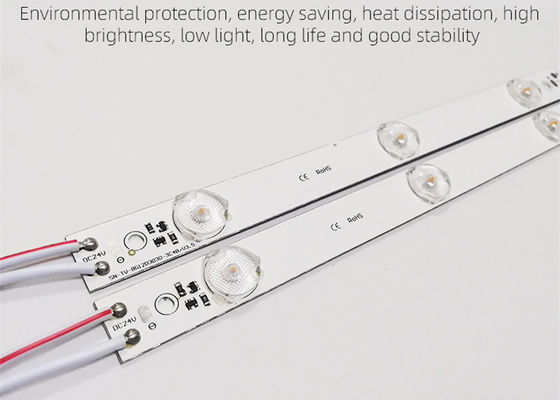

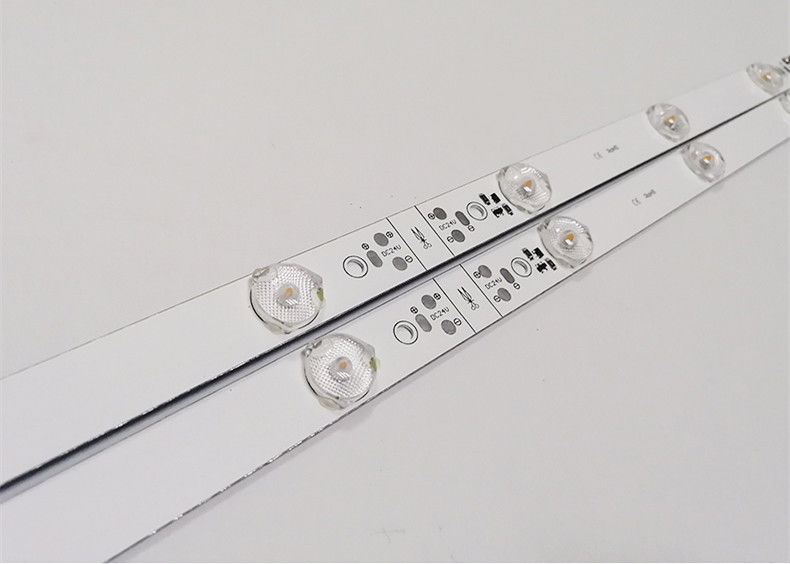

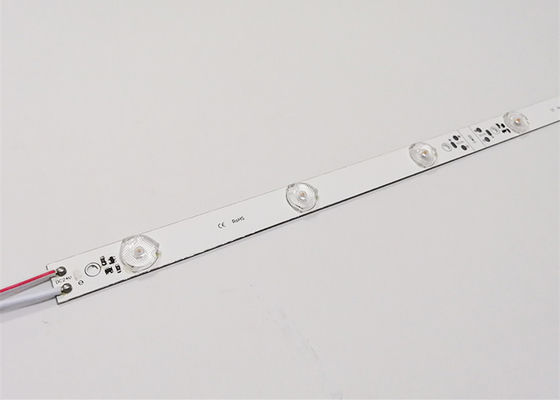

Osram 3030 Backlight Bar DC24V IP33 6500K Angle 175° CE ROHS
Product features:
1. DC24V constant voltage single head power supply, triode constant
current drive, three lamps and one shear, high efficiency, good
consistency.
2. 175°TV large Angle diffuse reflection optical lens, uniform light
effect without macular
3. The light source is osram SMD3030, high brightness, low light
decay, good color uniformity, long life, good stability.
4. High thermal conductivity aluminum substrate with a thickness of
1.2mm provides reliable heat dissipation for light source and
improves product life.
5. Low pressure work, widely used environment, strong safety and
reliability.
Product parameters,
| Part No. | CCT | Working voltage | LED source | W/pcs | Lm/Heart | Length(mm) | LED Qty |
| PS-B107-3D | 6500K | DC24V | SMD 3030 | 3 | 135 | 248 | 3pcs |
| PS-B107-6D | 6500K | DC24V | SMD 3030 | 6 | 135 | 495 | 6pcs |
| PS-B107-9D | 6500K | DC24V | SMD 3030 | 9 | 135 | 742 | 9pcs |
| PS-B107-12D | 6500K | DC24V | SMD 3030 | 12 | 135 | 990 | 12pcs |
