Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar
Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar

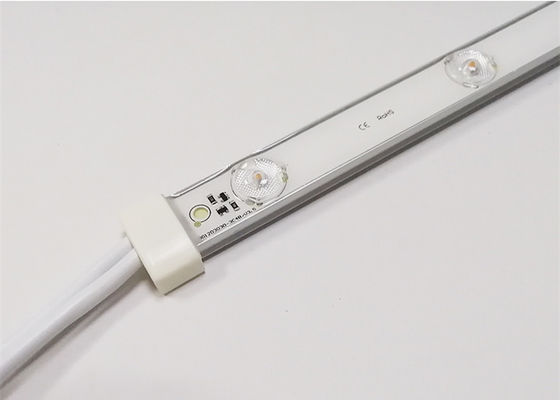

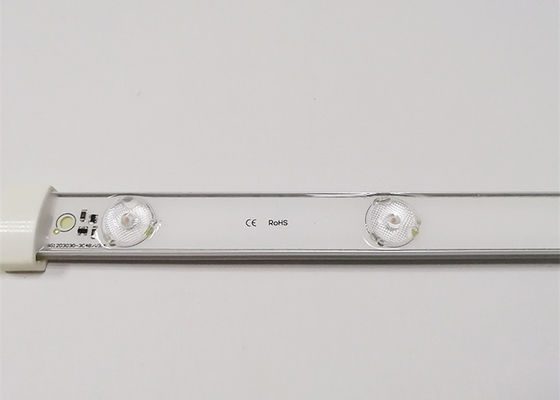

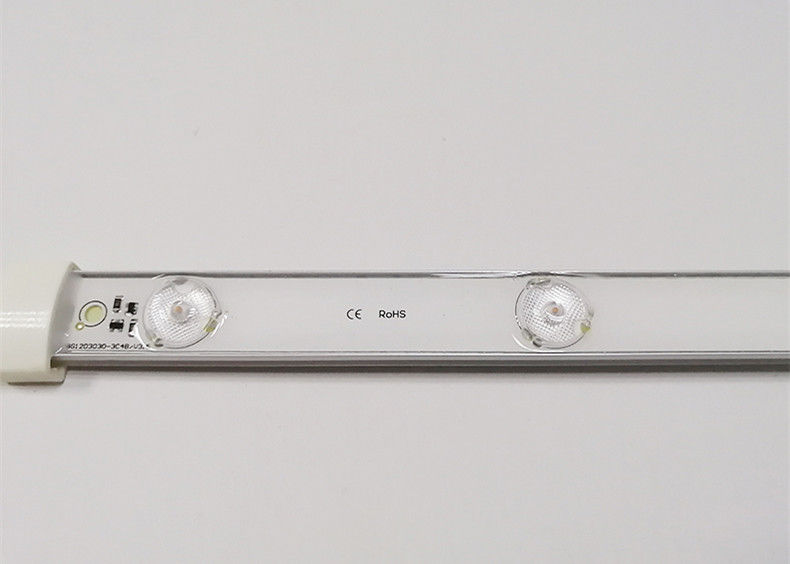

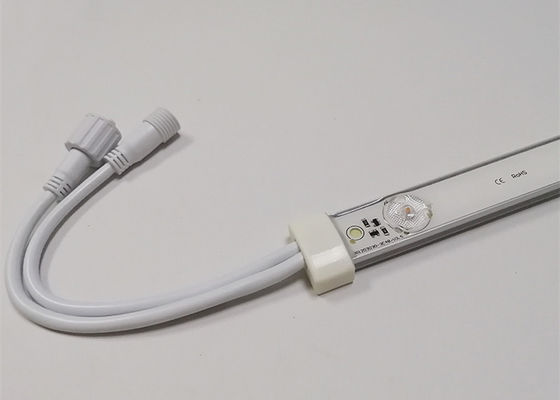

Large Image :  Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Phenson
Certification: CE,ROHS
Model Number: PS-B106
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Delivery Time: 7~10 days
Payment Terms: Western Union, T/T
Detailed Product Description
LED Source: Osram SMD3030 Part No: PS-B106
Beam Angle: 175° Color Temperature: 6500K
Lm/Heart: 135lm Length: 515mm
Protection Grade: IP65 Certification: CE,ROHS FCC
Produce Name: LED Backlight Bar Working Voltage: DC12V
High Light:

IP33 LED Backlight Bar

,

135lm LED Backlight Bar

,

SMD3030 Led Backlight Display

LED Back Light Bar High Brightness And Low Attenuation With Osram SMD3030 DC24V IP33



Product details,

1. DC24V constant voltage single head power supply, triode constant
current drive, two lamps and one shear, high utilization rate, good
consistency.

2. 175°TV large Angle diffuse reflection optical lens, uniform light
effect without macular.

3. The light source is osram SMD3030, high brightness, low light decay,
good color uniformity, long life, good stability.

4. High thermal conductivity aluminum substrate with a thickness of
1.2mm provides reliable heat dissipation for light source and improves
product life.

5. .Adopt 6063 aviation aluminum profile for heat dissipation, silicone
waterproof, effectively solve the problem of waterproof heat
dissipation.



Part No. CCT Working voltage LED source W/pcs Lm/Heart Length(mm) LED Qty
PS-B106-6D 6500K DC24V SMD 3030 6 135 515 6pcs
PS-B106-8D 6500K DC24V SMD 3030 8 135 680 8pcs
PS-B106-10D 6500K DC24V SMD 3030 10 135 845 10pcs
PS-B106-12D 6500K DC24V SMD 3030 12 135 1010 12pcs



Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar 0

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar 1

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar 2

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar 3

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar 4Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar 5

Low Attenuation SMD3030 DC24V IP33 135lm LED Backlight Bar 6
