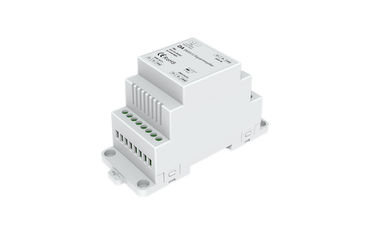

DS LED Pixel DMX SPI Decoder DMX To SPI Converter For SPI Lamps / LED Strip

Large Image : DS LED Pixel DMX SPI Decoder DMX To SPI Converter For SPI Lamps / LED Strip

Product Details:

Place of Origin:	Shenzhen Gugangdong China
Brand Name:	Phenson
Certification:	CE,ROHS
Model Number:	DS dmx to spi decoder

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Product size: L115W48H67 Net weight: 102g
Payment Terms:	L/C, T/T
Supply Ability:	100,000pcs

Contact Now

Detailed Product Description

Model Number:	DS Dmx To Spi Decoder	Output:	SPI Signal
Max. Load Power:	<1W	Working Voltage:	5-24VDC
Working Temperature:	-30℃~55℃	Iutput Signal:	DMX512
Output Signal:	SPI	Net Weight::	102 G
Product Size:	L115W48H67	Certification:	CE And ROHS
Highlight:	led light dimmer controller , led remote controller

DMX512 to SPI Converter DS Led Pixel DMX To SPI Decoder For SPI Lamps

Technical Parameters
● Input voltage: 5-24VDC
● Input: DMX512 signal & RF(Cutomized)
● Output: SPI signal
● Working temperature: -30℃~55℃
● Dimension: L115×W48×H67
● Weight: 102g

Summary
● Compatible with kinds of digital IC LED strip.
● Can work under DMX mode, Stand-alone mode, RF mode(customized).
● Under DMX mode, it can work as DMX decoder with standard DMX512 compliant interface,DMX address can be set easily and shown on the digital numeric display.
● Under Stand-alone mode, it can work as SPI controller, have 32 kinds dynamic mode,adjustable speed and brightness.
● Under RF mode, it matchs with our RGB remoter, it also can be controlled by mobile phone through WiFi-Relay controller.

DS LED Pixel DMX SPI Decoder DMX To SPI Converter For SPI Lamps / LED Strip 0

Product Size

Wiring Dirgram

DS LED Pixel DMX SPI Decoder DMX To SPI Converter For SPI Lamps / LED Strip 2
