10W CCT Adjustable LED Linear Light , Dimmable Waterproof LED Batten Lights

China 10W CCT Adjustable LED Linear Light , Dimmable Waterproof LED Batten Lights supplier

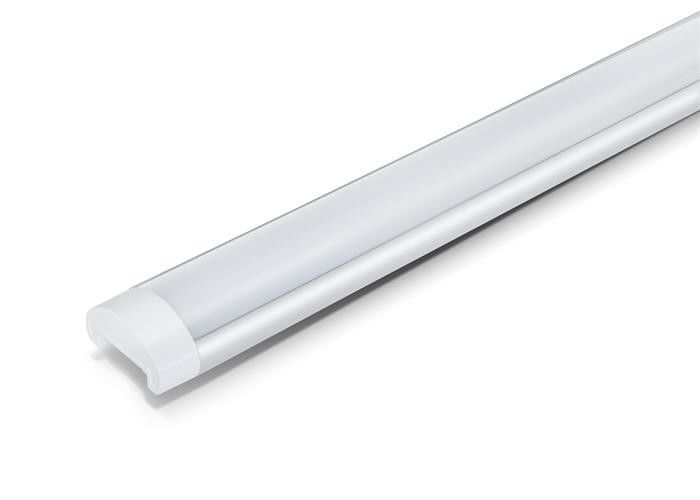

Large Image :  10W CCT Adjustable LED Linear Light , Dimmable Waterproof LED Batten Lights

Product Details:

Place of Origin: shenzhen china
Brand Name: Phenson
Certification: CE, EMC, ETL, LVD, RoHS, SAA
Model Number: PS-A014LPEFF-D

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiable
Packaging Details: 1500*130*83 mm
Detailed Product Description
Lamp Luminous Efficiency: 90-100lm/W Power: 10w
Color Temperature(CCT):: Cool White, Warm White , Pure White Working Temperature(℃): -30~+60°C
Working Lifetime(Hour): 50000 Hrs Certificate: CE, EMC, ETL, LVD, RoHS, SAA
Warranty: 5 Years Size: 300*79*34mm
LED: Samsung 2835

10W Dimmable CCT Adjustable IP65 Waterproof LED Batten Light , LED Linear Light



Quick Details :

Part No. :10W waterproof  Batten Light PS-A014LPEFF-D

Light Source: LED

Item Type: Linear Light

LED Light Source: Samsung SMD2835

Warranty(Years): 5

Input Voltage(V): AC90-265V

Lamp Power(W):10W / 20W / 30W /40W / 60W

Lamp Luminous Efficiency(lm/w): 90-100lm/W

CRI (Ra>): 80

Color Temperature(CCT): cool white, natural white, warm white

Working Temperature(℃): -30~+60°C

Working Lifetime(Hour): 50000

Lamp Body Material: Aluminum Alloy

IP Rating: IP65

Certification: CE, CQC, FCC, PSE, RoHS

Place of Origin: Guangdong, China (Mainland)

Brand Name: Phenson

Length:300mm / 600mm / 1200mm /1500mm

Power:10W / 20W / 30W /40W / 60W

CRI:>80Ra

PC Cover: Forested

Material: PC housing + PC cover + AL board

Usage: Market ,office ,school ,factory and so on

Keyword: IP65 led Batten light

Feature :

1.Less weight, 6063 aluminum material for rapid heat dissipation, high efficiency, high performance;

2.Designed for various applications with 120° - 150 ° precision refractive optical lampshade, high brightness SMD LED chips and linear high-voltage power supply;

3.Various functions to choose for different applications;

4.Non-waterproof IP44 serious and IP65 waterproof series are available;

5.Non-dimmable/Dimmable/CCT Adjustable/Microwave Sensor/Linkable Version like T5 Tubes are available

6. DIALUX simulation design are available.

Parameter :

Part No. PS-A014LPEFF-D
Power 10W±5%
LED brand Samsung LED
CCT 3000-7000k
CRI 70/80
Luminous flux 90-100lm/W
Size 300*79*34mm
PF >0.9
Input voltage AC90-265V
Warranty 5 Years
Dimmerable Yes
IP level IP65

 Application :

Office;Meeting room; Supermarket; Clothing stores; Home furnishing lighting;Warehouses, construction sites, schools, parking places, shopping malls, high-speed rail station, terminal, bus terminal, subway station.
