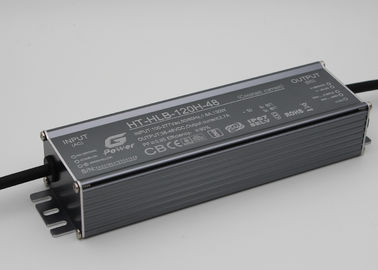

HLB series 120W Outdoor Led Driver Power Supply Waterproof IP67

China HLB series 120W Outdoor Led Driver Power Supply Waterproof IP67 supplier
HLB series 120W Outdoor Led Driver Power Supply Waterproof IP67 supplier HLB series 120W Outdoor Led Driver Power Supply Waterproof IP67 supplier

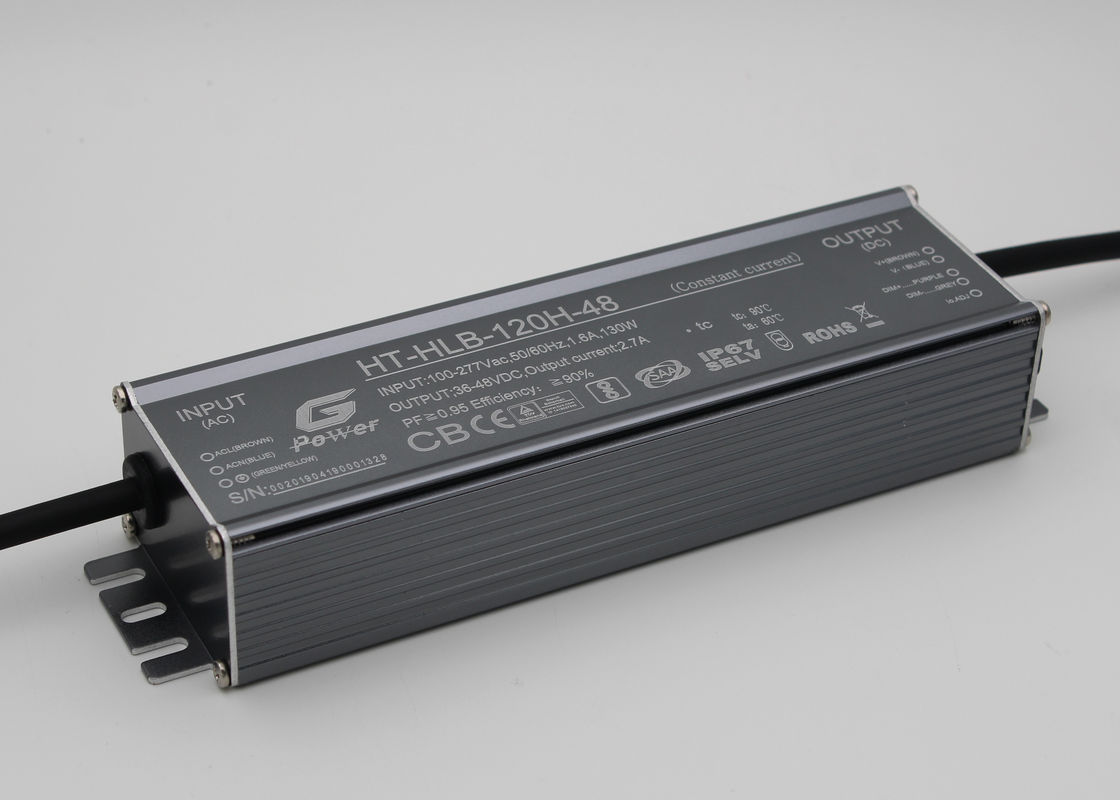

Large Image :  HLB series 120W Outdoor Led Driver Power Supply Waterproof IP67

Product Details:

Place of Origin: shenzhen china
Brand Name: phenson
Certification: CE Rohs
Model Number: HLB-120H-48

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiable
Packaging Details: a. Outside carton dimension: L×W×H =51cm×42cm×15cm; b. 20 PCS/Carton; c. Net weight/PC:15kg;Gross weight/Carton:16.5kg
Supply Ability: 100k/month
Contact Now
Detailed Product Description
Model: HLB-120H-36A O/P Voltage: 36-48V
O/P Curren: 2.5A Rated Power: 120W
O/P Current Tolerance: ±5% THD (Typ.): 15%
PF (Typ.): 0.97 Efficiency (Typ.): 90%
MOQ: 50pcs IP Grade: IP67
High Light:

constant current power supply

,

meanwell switching power supply

HLB series 120W Outdoor Led Driver Power Supply Waterproof IP67



Feature :



  • Metal housing design with functional grounding.
  • Built-in active PFC function.
  • Meet IP67 grade, can meet the demand of indoor and outdoor installation.
  • Function-option :The output current is adjusted by potentiometer.
  • Optional dimming function: 0-10V, PWM, Timing.
  • Surge Protection: L-N 4k.
  • 5 years warranty.

Application :

LED Street Lighting
LED Architectural Lighting
LED Patio Lighting
LED Floodlight
Other LED Lighting Fixtures



Model List

Model O/P O/P Rated Power O/P THD PF Efficiency
Voltage Current Current (Typ.) (Typ.) (Typ.)
    Tolerance
HLB-120H-36A 25-36V 3.3A 120W ±5% 15% 0.97 90%
HLB-120H-48A 36-48V 2.5A 120W ±5% 15% 0.97 90%
Custom-Tailor / / / / / / /


Input Characteristics,

Parameter Min Typ. Max Remarks
Rated AC input range 100Vac   277Vac
AC input range 90Vac   305Vac
Input frequency range 47Hz   63Hz
Max input current     1.6A 90Vac, full load
Inrush current     60A 230Vac/50Hz, cold start
No load power   1.0W 1.5W 230Vac/50Hz, no load
Power factor 0.95 0.97   230Vac/50Hz, full load
  0.9     100-277Vac/50Hz, 70-100% Load
THD     15% 100-277Vac/50Hz, 70-100% Load


Output Characteristics,





Parameter Min Typ. Max Remarks
Output voltage range HLB-120H-36 25V 33V 36V
  HLB-120H-48 36V 45V 48V
  Custom-Tailor / / /
Rated output current HLB-120H-36     3.3A
  HLB-120H-48     2.5A
  Custom-Tailor / / /
Current adjustable HLB-120H-36 1.55A 3.3A 3.65A

range
  HLB-120H-48 1.25A 2.5A 2.75A
  Custom-Tailor / / /
No load voltage HLB-120H-36 38V 42V 48V
  HLB-120H-48 50V 52V 55V
  Custom-Tailor / / /
Efficiency @230Vac HLB-120H-36 88% 90% /
  HLB-120H-48 88% 90% /
  Custom-Tailor / / /
Output current tolerance -5%   5%
Output current ripple(PK-PK)   5% 10% Full load
Start-up current overshoot     10%
Start-up time   1S 2S 230Vac
Line Regulation -1%   1% Full load
Load Regulation -2%   2%



Installation Tips,

Highly recommended to seal the adjustable hole with silicon glue (#704 preferred) after adjusting the driver’s output current. Torsion with proper strength to avoid permanent damage to the potentiometer inside.



Package,Transportation&Storage



1. Package
a. Outside carton dimension: L×W×H =51cm×42cm×15cm;
b. 20 PCS/Carton;
c. Net weight/PC:15kg;Gross weight/Carton:16.5kg
d. The packing box shall contain the product name, model number, manufacturer's mark, date of manufacture, etc.Each shipment is accompanied by an inspection report.


2. Transportation
Packaging is designed suitable for transportation by trucks, vessels and flights. The products should be shielded from direct sunshine, loaded/unloaded with caution.


3. Storage
The product storage meets the standard of the GB 3873-83.
Products should be rechecked if stock for over 1 year before installation.
