Product Details:
Payment & Shipping Terms:
|
Certification: | CE,ROHS FCC | Beam Angle: | 15x45° |
---|---|---|---|
Part No: | PS-C403 | Working Voltage: | DC24V |
LED Source: | CSP1818 | Power /piece: | 15W/20W/25W |
Lm/Heart: | 300lm | Length: | 300/400/500mm |
LED Qty: | 6pcs/8pcs/10pcs | IP Grade: | IP65 |
Produce Name: | LED Edge Light Bar | PCB Material: | Aluminium |
High Light: | 500mm Length Edge Light Bar,FCC 25W Edge Light Bar,6500K Side Light Led Strip |

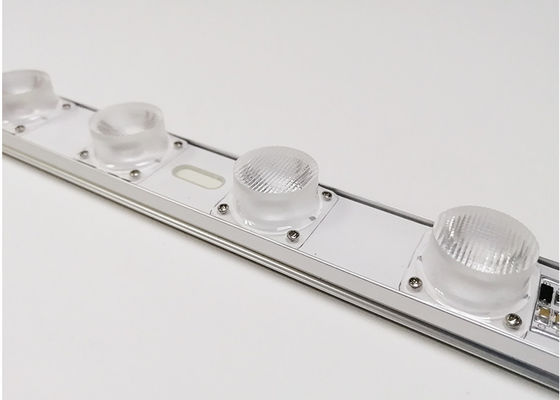

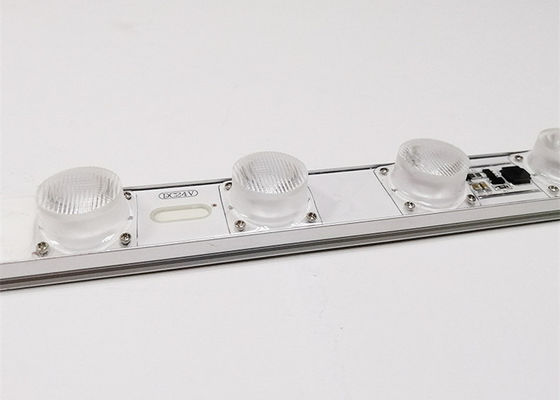

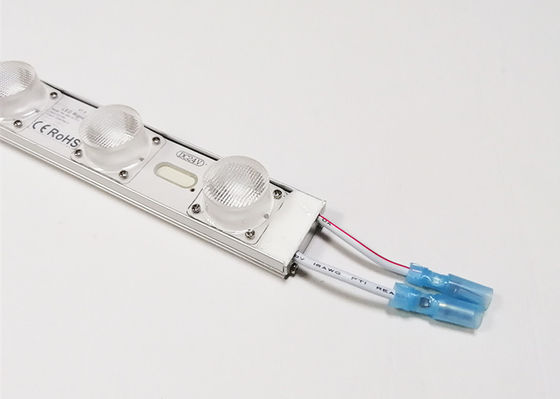

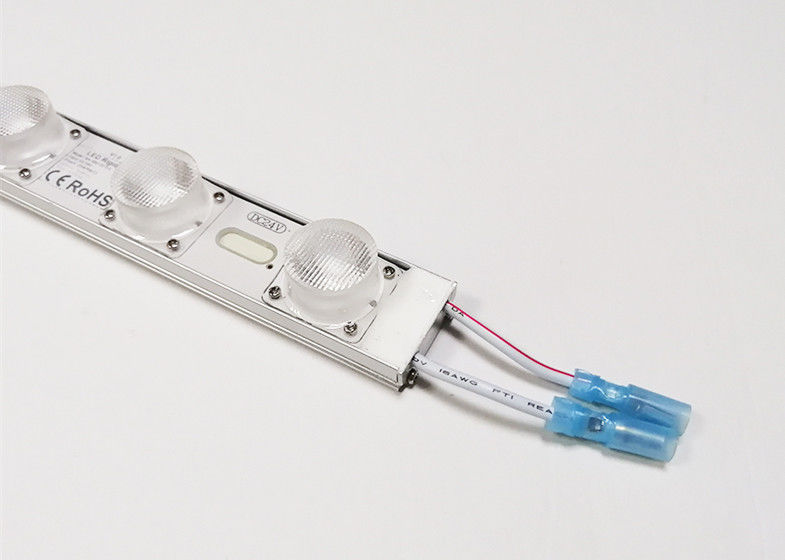

LED Edge Light Bar High Power Constant Current Side Light Strip 300lm 6500K
Product features ,
1. DC24V low voltage input, safe and reliable, wide range of
application.
2. High power constant current drive to ensure LED brightness
consistency and lamp box uniformity.
3. Using Taiwan new century CSP1818 high power LED, good heat
dissipation, large current, high reliability.
4. Adopt 2.0mm thick and high thermal conductivity aluminum
substrate to dissipate heat and improve the service life of products.
5. With an optical lens of 15X45°, the light scatters from both
directions, ensuring the uniformity of the light source, no macula,
and the irradiation distance up to 3m.
6.Fixed with hard anti-rust screw, never drop when using,
environmental protection and maintenance-free.
7. 6063 aviation aluminum profile heat dissipation, silicone
waterproof, effectively solve the problem of waterproof heat
dissipation.
Part No. | CCT | Working voltage | LED source | W/pcs | Lm/Heart | Length(mm) | LED Qty |
PS-C403-6D | 6500K | DC24V | CSP1818 | 15 | 300 | 300 | 6pcs |
PS-C403-8D | 6500K | DC24V | CSP1818 | 20 | 300 | 400 | 8pcs |
PS-C403-10D | 6500K | DC24V | CSP1818 | 25 | 300 | 500 | 10pcs |
