Product Details:
Payment & Shipping Terms:
|
| Certification: | CE ROHS | Material: | Aluminium+Acrylic+LED |
|---|---|---|---|
| CCT: | 7000-8000K | Light Source: | SMD2835 |
| Application: | Cinema,store Center Of Mobile Phone ,catering ,jewelry ,clothing | Voltage: | 12VDC |
| Shape: | Custom Shape | Protection Grade: | IP20 |
| Installation: | Standing | Produce Name: | LED Dynamic Light Box |
| Thickness: | 1.2mm | Warranty: | 2 Years |
| Lifespan: | 50, 000 Hours | ||
| High Light: | SMD5050 Programmable Flash Light Box,25W Programmable Flash Light Box,23Lm/Heart LED Animation Light Box |
||
Animation LED Advertising Dynamic Programmable Flash Light Box
Product details ,
1. DC12V-DC24V low voltage power supply, safe and reliable,
constant current IC drive, good brightness consistency.

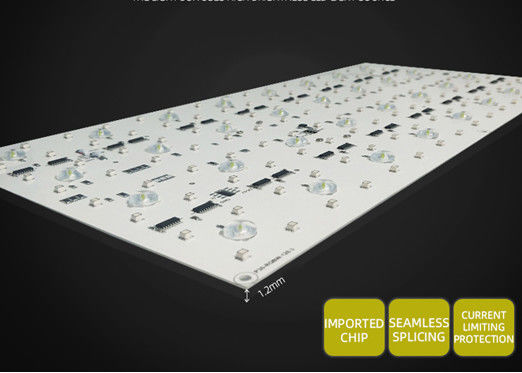

2. Adopt 1.2mm thick and high thermal conductivity aluminum
substrate to dissipate heat and improve the service life of the
product.
3. Using IC SMD5050 lamp bead with built-in drive, the color of light
is highly consistent, which can realize full true color display.
4. Using SMD2835 white lamp beads as lighting supplement, the
lamp beads have high brightness, low light decay, good color, long
life and other characteristics.
5. The large Angle optical lens is used to scatter the white light beads,
so that the lamplight emits light uniformly without yellow spots.
6. Lamp bead spacing 30mm, video meticulous operation, can be
used for > 8CM thick light box and interior decoration lighting.
| Part No. | Color | Working voltage | LED source | W/pcs | Lm/Heart | CRI | LED Qty |
| PS-P30-H-RGB | RGB | 12-24V | SMD5050 | 25 | 23 | ≥70 | 128pcs |
| PS-P30-H-RGB+W | RGB+6500K | 12-24V | SMD 5050+2835 | 40 | 23/W60 | ≥80 | 128+24pcs |
