WS2812B Intelligent Control LED Integrated Light Source

WS2812B Intelligent Control LED Integrated Light Source
WS2812B Intelligent Control LED Integrated Light Source WS2812B Intelligent Control LED Integrated Light Source WS2812B Intelligent Control LED Integrated Light Source WS2812B Intelligent Control LED Integrated Light Source

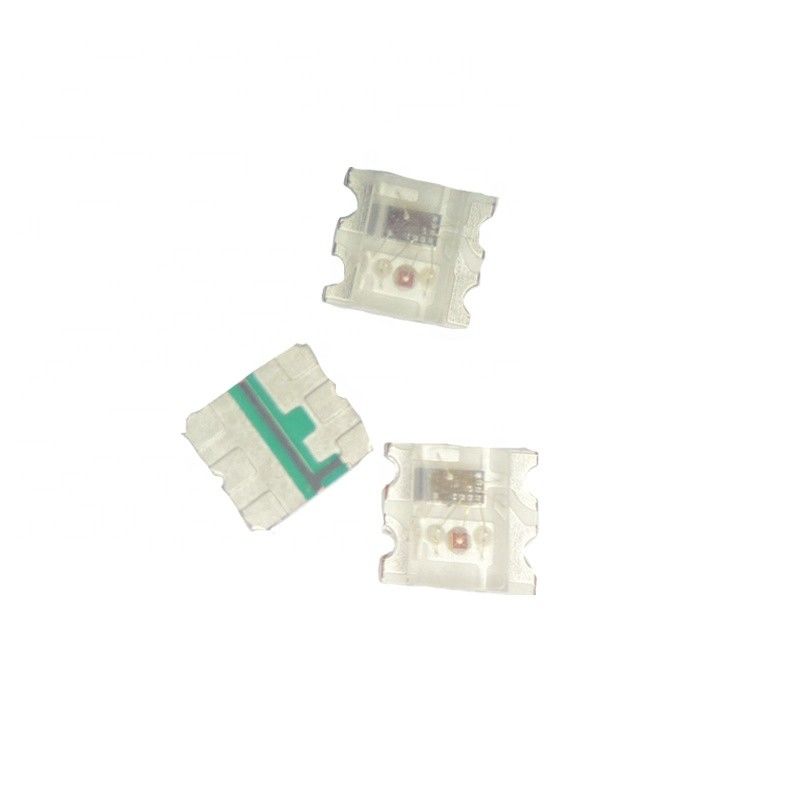

Large Image :  WS2812B Intelligent Control LED Integrated Light Source

Product Details:
Brand Name: Phenson
Certification: CE Rohs
Model Number: IC Built In LED
Payment & Shipping Terms:
Minimum Order Quantity: 4500pcs
Price: Negotiable
Packaging Details: Carton box, capacity 5 or 10 reels per box
Supply Ability: 100kk/month
Detailed Product Description
Place Of Origin: Guangdong , China Type: IC LED
Operating Temperature: -30 - 80℃ Emitting Color: Digital RGB
Power: 0.3W Voltage: DC 5V
Current: 12mA * 3 Package Type: 4500pcs Per Reel

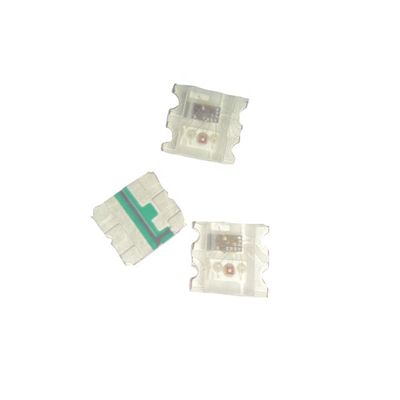

WS2812B Intelligent Control LED Integrated Light Source



Quick Details

Brand Name Phenson
Certification CE , RoHS
Warranty(Year) 2 Years
Type SMD LED
Lighting solutions service Digital LED Application
Chip Material AlGaInP
Emitting Color DIGITAL RGB
Power 0.3W
Operating Temperature(℃) -30 - 80
Storage Temperature(℃) 10 - 30
Place of Origin Guangdong , China
Chip Brand Sanan Chip
Voltage DC 5V
Current 12mA * 3
Package Type 4500pcs per Reel
Selling Units Multiple of 4500
Single Package Size 25X25X6 cm
Single Gross Weight 0.500 kg



Descriptions

WS2812B is an intelligent control LED light source, its exterior adopts the latest MOLDING packaging

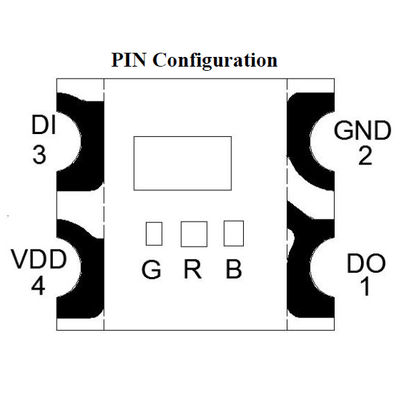

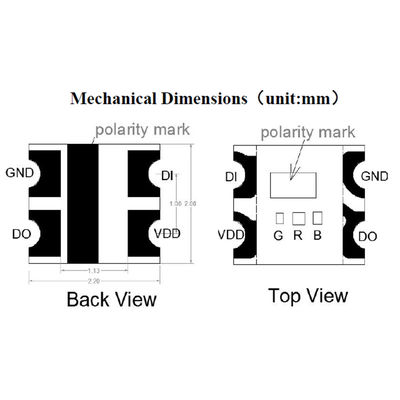

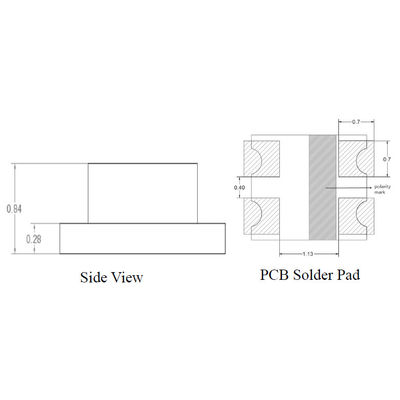

technology, the control circuit and RGB chips are integrated in a package of 2020 component.

Its internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a
precision internal oscillator and a voltage programmable constant current control part, effectively ensuring the pixel
point light color height consistent.

The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive
data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which
reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After
transmission for each pixel, the signal to reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel
cascade number is not limited the signal transmission, only depend on the speed of signal transmission.

RESET time >280μs , it won't cause wrong reset while interruption, it supports the lower frequency and inexpensive
MCU. Refresh Frequency updates to 2KHz, Low Frame Frequency and No Flicker appear in HD Video Camera, it
improve excellent display effect.

LED with low driving voltage, environmental protection and energy saving, high
brightness, large scattering angle, good consistency, low power, long life and other advantages. The control chip
integrated in LED above becoming more simple circuit, small volume, convenient installation.

Features

● The control integrated circuit and the LED share the only power source.
● 12mA operating current per channel.

● Control circuit and RGBchip are integrated in a package of2020components, to form a complete addressable pixel.
● Built-in signal reshaping circuit,after wave reshaping to the next driver,ensure wave-form distortion not
accumulate.

● Built-in electric reset circuit and power lost reset circuit
.
● Each pixel ofthe threeprimary color can achieve256brightessdisplay,completed1677216 color full color display and scan frequency is of 2KHz.
● Cascading port transmission signal by single line.

● When the refresh rate is 30fps,cascade number are not less than 1024pixels.
● Send data at speeds of 800Kbps.

● The color of the light is highly consistent, cost-effective.
● Power Reverse-connection protection.

● IC internal integrated filter capacitor(no external components required).


Applications
● Consumer electronics area.
● LED Lighting decoration area.

● Computer and peripheral equipment, game equipment, all kinds of electrical equipment.
WS2812B Intelligent Control LED Integrated Light Source 0WS2812B Intelligent Control LED Integrated Light Source 1WS2812B Intelligent Control LED Integrated Light Source 2WS2812B Intelligent Control LED Integrated Light Source 3
