Product Details:
Payment & Shipping Terms:
|
| Color: | 3000-6000K | LED Chip Quantity: | 480 Chips/ Meter |
|---|---|---|---|
| PCB Width: | 8/10 Mm | Wattage: | 10-14W W/m |
| Warranty: | 3 Years | Working Voltage: | 24V DC |
| High Light: | customized COB LED Rope,Flexible COB LED Rope,480LEDs/M COB LED Strip Light |
||

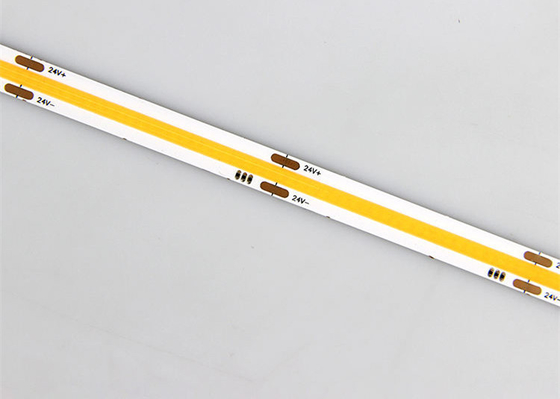

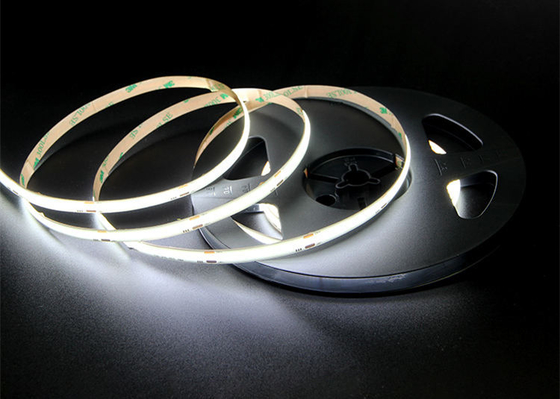

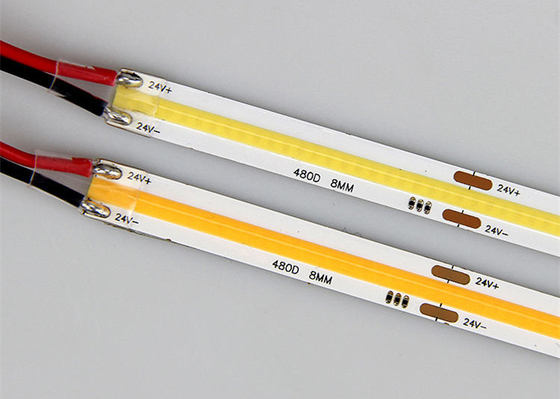

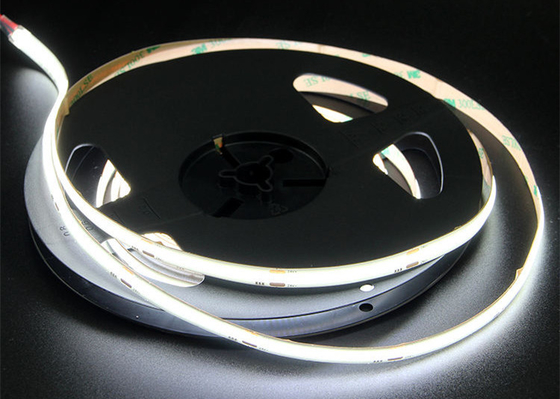

12/24V COB LED Rope High CRI 90 480LEDs/M COB Led Strip Light
Product parameters,
| Product Name | Flexible COB LED Strip |
| Copper PCB Size | 8mm |
| Color | 2700K,3000k,4000k,6500k |
| Size | 8*5000mm |
| LED Qty | 480 chips (1 row ) |
| Beam Angle | 180 Deg |
| CRI | Ra 90 |
| POWER | 10w per meter |
| IP Rate | IP20/IP65/IP67/IP68 |
| Lumen (lm) | 90-120LM/W |
| SDCM | 3step |
| Energy effiffifficiency class | F/G |
| Working Temperature | -25℃-60℃ |
| Storage Temperature | -40℃-80℃ |
| Packing | 5M/Roll, can be customized |
| Working Voltage | DC12V/24V |
| Cut size | 24V(50mmper cut) / 12V(25mm per cut) |
| QC Checking | 3 times QC checking(SMT + PCB jointing+ after aging testing) before packing |
Why choose COB LED strip?
1.Compare COB LED strip with high density 700led/m strip. COB give more uniform lighting
COB LED strip
2.Compared with other led strip, COB gives perfect uniform lighting for led linear light.
