Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv

Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv
Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv

Large Image :  Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv

Product Details:
Place of Origin: China
Brand Name: phenson
Model Number: PSV18
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/carton
Payment Terms: T/T
Supply Ability: 10000PCS/month
Contact Now
Detailed Product Description
Certification: Ce, EMC, LVD, RoHS Lamp Luminous Efficiency(lm/w): >160
Beam Angle(°): 10°/15°/24°/36°/60°/90°/30X45°/90X40° Bracket: 360deg
Color Rendering Index(Ra): 70 Working Temperature(℃): -40 - 50
Module Wattage: 200W-300W LED Chip: 5050
Voltage: AC100-277V, 50/60Hz
High Light:

Soccer Ball Pitch Training Floodlight

,

1000W LED Training Floodlight

,

10kv LED Training Floodlight

Packaging & delivery
Packaging Details
1pcs/carton
Port
Shenzhen
Lead time:
Quantity(pieces) 1 - 100 >100
Lead time (days) 30 To be negotiated
1000W LED Stadium Light 200W-1800W design
Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 0
Features of LED stadium light
High performance design with multi-chip package 3737/5050 LED source.
The light transmittance up to 98%.Luminous efficacy up to 110-140lm/w.
10/159/24/36 /60 /90/30X45/40X90 Deg lens
-180 -180° adjustable angle available for outdoor & indoor lighting application.
With excellent housing design reach IP66/IK10 rating.
Lifespan over 50,000 hours,5 years warranty



Model NO.
V18-500-2
V18-900-3
V18-1200-4
V18-1500-6
V18-1800-6
Wattage
500W
900W
1200W
1500W
1800W
Beam angle
10°/15° (120lm/w)
24°/36°/60°/90°/30X45°/90X40°(140lm/w)
CCT
4000K / 5000K / 6000K / 6500K
Lamp size(mm)
409x500x163
409x748x163
745x557x163
745x807x163
745x807x163
N.W.
13.5KG
19.5KG
25KG
35KG
35KG

Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 1

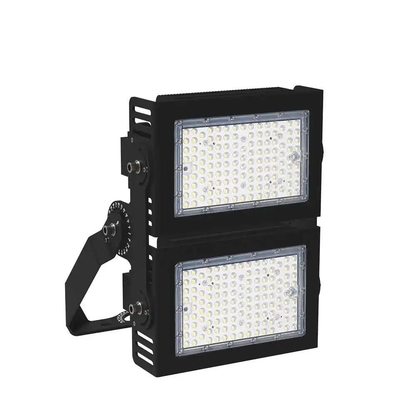

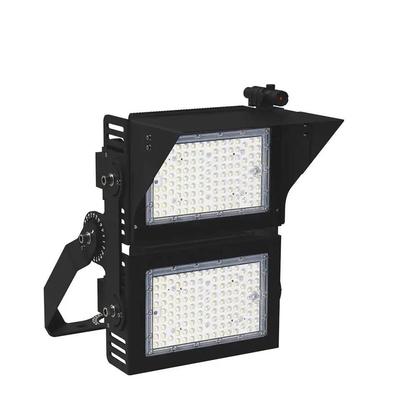

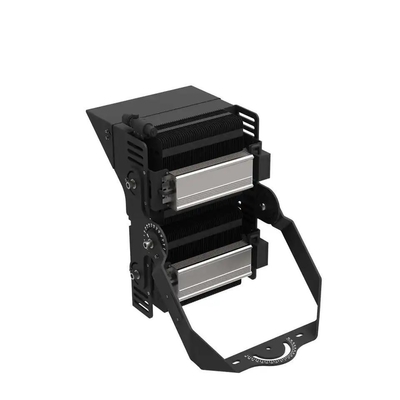

Pictures of led stadium light 200w-1800w series.
Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 2Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 3
Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 4Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 5
Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 6
Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 7
Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 8Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 9

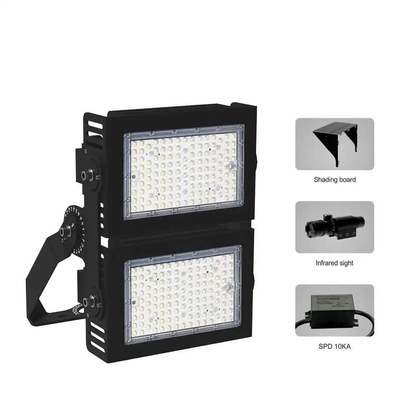

Optional Waterproof LED Driver Box

The beam angle of 1000W LED stadium light



The application of the high mast pole 1000W LED stadium light

Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 10

Soccer Ball Pitch Training Floodlight Led Stadium Lighting 1000W 1500W High PF Surge 10kv 11



FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.



Q5.I have a football/tennis court ,what's your suggestion?

Please give me the below information:
A:the area of the field
B:the loction and the height of the light poles
C:the requirement of the illumination
