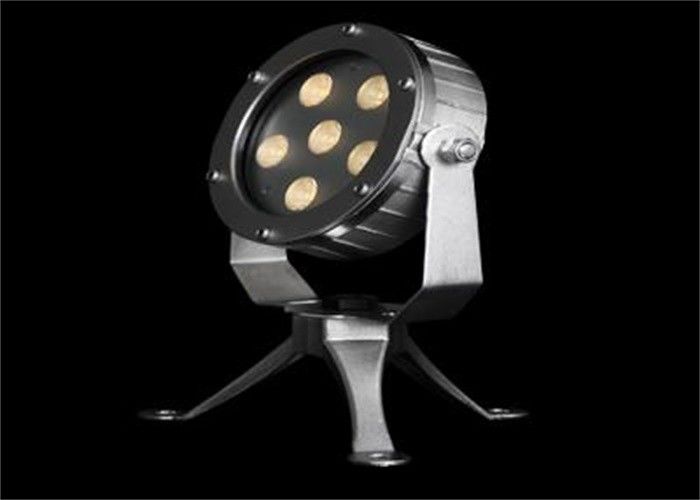

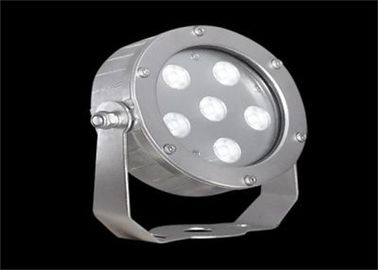

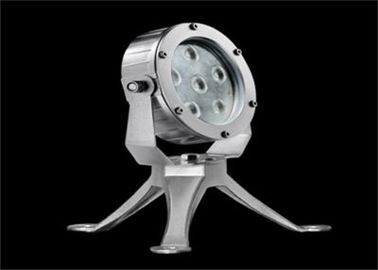

IP68 Underwater Spot Light

IP68 Underwater Spot Light
IP68 Underwater Spot Light IP68 Underwater Spot Light IP68 Underwater Spot Light

Large Image :  IP68 Underwater Spot Light

Product Details:
Place of Origin: Shenzhen China
Brand Name: Phenson
Certification: CE ROHS
Model Number: B5AC0616
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Each one get into one carton box
Detailed Product Description
Place Of Origin: Shenzhen China Item Name: Illumination Spotlights
Color: Single Color/RGB Warranty(Year): 3 Years
Input Voltage(V): 24VDC Operating Temperature: -20℃~ 40℃
Light Window: Tempered Glass. T=3mm IK Rate: IK06
Bracket: 12# Die-casting Powder Application: Outdoor Building / Outdoor Decoration
Power: 12W Certifications: CE ROHS
High Light:

IP68 underwater spot light


IP68 underwater led spotlights


IP68 underwater LED Illumination Lights

IP68 Stainless Steel LED Underwater Spot Light 12W Landscape


Technical paramenters

Item Name Underwater IP68 Spot Light
Input Voltage DC 24V
LED power 1x3W
Housing Material LED + LEDLINK LENS + Tempered Glass + Aluminum body
Color Options Red,Yellow,Blue,Green,Violet,Pink,White,RGB ETC.
Length Options 2M (other length can be customized)
PCB Aluminum PCB with Heat Conductivity≥2.0w/mk
Beam Angle 30°
Certificates CE, ROHS
Warranty 3 years



1) Housing: Molding shaped sus 316#stainless steel housing

2) Bracket: Stainless steel sus 316#

3) Front cover: Stainless steel sus 316L#

4) Glass: Tempered glass. T=5mm

5) Lens: Optical lens, efficiency≥85%

6) Cable gland: IP-68 PG-11 copper with nickel-coated

7) Seal: Molding shaped silicon seal

             under the front cover

             Silicon glue among LED

             lens and PCB

8)  LED: TO type power LED

9)  PCB: Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w/mk

10) Power cable: H07RN-F 2X1.0mm2 L=2m (for Single color)

                            H07RN-F 4X1.0mm2 L=2m (for RGB)

11) Application environment: Temperature of water between -20℃- 40℃ less than 1 meter depth.


IP68 Underwater Spot Light 0



IP68 Underwater Spot Light 1

IP68 Underwater Spot Light 2

IP68 Underwater Spot Light 3

IP68 Underwater Spot Light 4

IP68 Underwater Spot Light 5

IP68 Underwater Spot Light 6

IP68 Underwater Spot Light 7


The Features & Benefits of Helios high power IP65 waterproof led landscape light :

1. Energy cost saving

 Helios led spotlight have higher luminous efficacy up to 80-100Lm/w, 60-70% energy cost saving compared to the traditional HPS Lamps.

2. Instant ON/OFF operation

    This is one of the superior features of LED lightings.You don’t need to wait for any second.

3. Warranty Policy

  Helios led spotlight have 3 years warranty with original written warranty ; 20,000 switch cycles(on/off switching).

4. Low Light Loss.

The light source is the low light loss and high-bright LED, which the loss is less than 5% in 10,000 hours.The aluminum back-side housing

performs an excellent heat dissipation,which guarantees a lower junction temperature of the LED,thus slow down light loss.

5. Environment-Friendly

   While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Lead and Mercury.

6. High-brightness

   Large--size square LED chip, and the light transmittance efficiency of the PC-cover can reach 95%.

7. Environment-Friendly

   While Helios led spotlight working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Mercury.
