5mA 0402 Series Red / Green / Yellow / White Color Led Light Emitting Diode With Small Size

China 5mA 0402 Series Red / Green / Yellow / White Color Led Light Emitting Diode With Small Size supplier
5mA 0402 Series Red / Green / Yellow / White Color Led Light Emitting Diode With Small Size supplier 5mA 0402 Series Red / Green / Yellow / White Color Led Light Emitting Diode With Small Size supplier

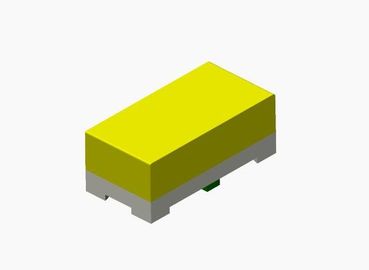

Large Image :  5mA 0402 Series Red / Green / Yellow / White Color Led Light Emitting Diode With Small Size

Product Details:

Place of Origin: china
Brand Name: Refond
Certification: Rohs
Model Number: 0402

Payment & Shipping Terms:

Minimum Order Quantity: 4K
Price: Negotiable
Packaging Details: 4000pcs/reel
Contact Now
Detailed Product Description
Forward Current: 10mA Brightness: 70mcd
Type: 0402 Voltage: 1.8 - 3.4V
Color: Yellow ,green ,red ,white ESD: 2000V
Size: 1.0 * 0.5 * 0.4mm IF: 5 MA

5mA 0402 Series Red / Green / Yellow / White Color Led Light Emitting Diode With Small Size

Feature :
 Extremely wide viewing angle.
 Suitable for all SMT assembly and solder process.
 Available on tape and reel.
 Moisture sensitivity level: 3.
 Package:4000pcs/reel.
 RoHS compliant.

Description :
The White LED which was fabricated using a blue chip and phosphors.
Application :
Optical indicator.

Backlight for LCD, switch and Symbol, display.
General use.
Package and size :

5mA 0402 Series Red / Green / Yellow / White Color Led Light Emitting Diode With Small Size

Electrical / Optical Characteristics at Ts=25°C

Part No. If (mA) VF(V) IV (mcd) CCT (K) WD(nm) View angle
RF-BU0402TS-CE-B 5 2.8 70   470 120°
RF-GN0402TS-CF-B 5 2.5 290   522 120°
RF-YU0402TS-AE-B 5 1.9 15   588 120°
RF-OU0402TS-CE-B 5 1.9 28   622 120°
RF-WU0402DS-DD-B 5 2.75 150-530 0.27/0.27   120


Absolute Maximum Ratings at Ts=25°C

Parameter Symbol Rating Units
Power Dissipation Pd 24 mW
Forward Current IF 10 mA
Peak Forward Current IFP 60 mA
Reverse Voltage VR 5 V
Electrostatic Discharge ESD 2000 V
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +85
junction temperature Tj 95



Note:

1. 1/10 Duty cycle, 0.1ms pulse width.

2. The above forward voltage measurement allowance tolerance is 0.1V.

3. The below color coordinates measurement allowance tolerance is 0.003.

4. the above luminous flux measurement allowance tolerance ±10%.

5. Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
6. All measurements were made under the standardized environment of Refond.

7.When the LEDs are in operation the maximum current should be decided after measuring the package temperature,junction temperature should not exceed the maximum rate.LED
