Product Details:
Payment & Shipping Terms:
|
| Model Number:: | PS-50RGB | Light Source:: | LED |
|---|---|---|---|
| Emitting Color: | RGBW | Lighting Source: | SMD 5050 RGBW |
| LED Type: | Sanan5050 3000-3500mcd | Power Consumation: | 23W/m |
| Warranty Period: | 3 Years | Working Voltage: | 24VDC |
| PCB Width: | 12mm | IP Grade: | Available For IP20,IP54,IP65,IP67 |
| Size (mm): | 12*1000*2 | Length: | 5m/ Reel |
| High Light: | led flexible tape light,led ribbon tape light |
||

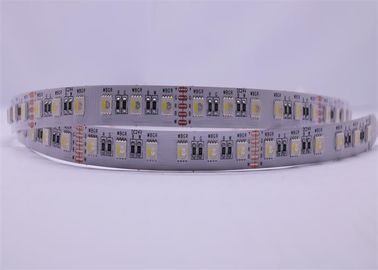

24VDC 5050RGBW LED Strip 72LED/M 23W 4in1 SMD multicolor christmas led strip light IP20 IP65IP67 IP68
Features
1) LED chip——SMD5050 R, G, B, W(WW/CW) 4 in 1 LED chip.
2)Standard Reel Length: 5meter/roll, also can be customized.
3)Cutted: you can cut this stuff pretty easily with wire cutters,
4)Power consumption: theory power is 23W/M, but the really power just about 18W/M.
5)Driver used:24VDC,6 led cuttable.
6)Adhesive tape: non-waterproof: with 3M adhesive on back side for sticky;
waterproof: screw+silicon clip, or 3M adhesive back side.
7)Type: RGBW, RGBCW, RGBWW——72 LEDs/m, White PCB
9)Color temperature:
RGBWW: RGB+3000K;
RGBW: RGB+6000K;
RGBCW: RGB+10000K
Product description:
DC24V, 5050 RGB , 72 LEDs/m
Product:5050 DC24V strip
Dimension: L5000mm*W12 mm*H0.25mm
LED quantity: 360 SMDs/pcs, 72 5050 RGBCW SMDs/m
Thickness of PCB: 0.25mm
Working voltage: DC24V
Power dissipation: 23W/m
Viewing angle: 120 degree
Product specification:
| Ordering Code | Colors Available | LED features | LED Q’ty/m |
PCB | Voltage (VDC) |
Max Power (W/m) |
Waterproof Grade available (IP) |
| PS50RGBW24072IP20 | RGBW | Sanan5050 3000-3500mcd | 72 | 12mm white | 24VDC | 23W |
IP20/IP65/IP67/IP68
|
CRI70/CRI80/CRT90 of RGBW LED strip lights:
Application of RGBW LED strip lights
1)Applicable for automobile and bicycle decoration,border or contour lighting
2)Widely used in home,hotels,clubs,shopping malls for decoration.
3)Architectural decorative lighting,boutique atmosphere lighting.
4)Widely used in the illumination of emporiums,meeting room,factory,light box.
5)Extensively applied in Backlighting,concealed lighting,channel letter lighting
