Payment & Shipping Terms:
|Item:||Twins Led Spot Light||Power:||15W / 30W / 50W / 70W|
|Lighting Efficiency:||80lm/W||Certificate:||UL/TUV/SAA/CB/CE Approved|
|Warranty:||5 Years||Beam Angle:||24/60°|
|LED:||Original CITIZEN COB LEDs||Dimmable:||Yes|
illuminator led lights,
outdoor led lighting

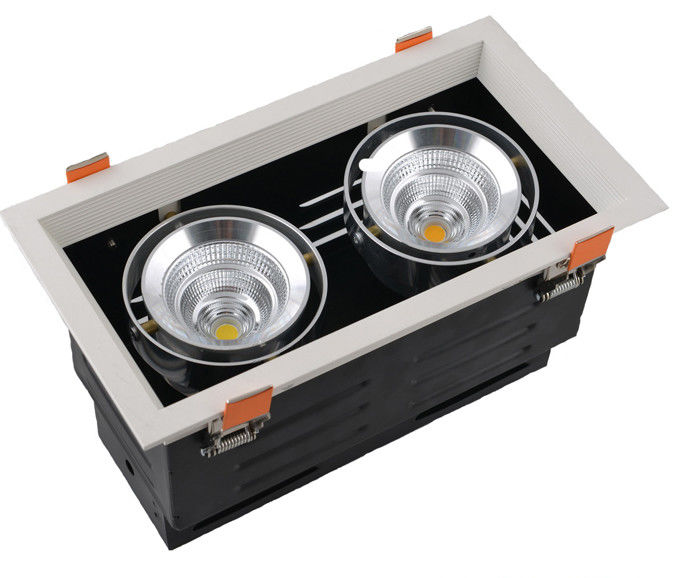

Double Head Retrofit COB LED Grille Recessed Light , Twins LED Spot Downlight
Features for 2*25w cob led grille recessed light :
2*40W LED Grille Downlight(double heads)
1. LED chips : Original CITIZEN COB LEDs
2. Driver : LiFud driver(3 years or 5 years warranty)
3. Material : ADC12 Aluminum Housing and Cold Forging Heatsink
4. Dimmable : triac , 0-10V and DALI
5. Voltage : AC200-240V , AC100-270V
6. LM-80 approved , 90-100LM/W
7. CCT : 2700K-5000K
8. High CRI > 80Ra
9. Protection Class : IP54
10. UL/TUV/SAA/CB/CE Certificate
Specification for double head 2*40w cob led grille recessed light :
|LED||Lumen||Power||Voltage||Beam angle||Size (mm)||Cuthole (mm)|
|PS-CG1403-15||COB CITIZEN CLL022-1202A5 2PCS||1050 lm||15 W||220-240V
|PS-CG1404-30||COB CITIZEN CLL022-1204A5 2PCS||2400 lm||30 W||220-240V
|PS-CG1405-50||COB CITIZEN CLL032-1206A5 2PCS||4016 lm||50 W||220-240V
|PS-CG1406-70||COB CITIZEN CLL032-1208A5 2PCS||5600 lm||70 W||220-240V
Delivery time :
5-7 days for sample order ,mass order around 20 days.
1. How do your 2 head LED Grille Downlights hold in place in my ceiling?
Our 2 head LED Grille Downlights come with butterfly spring clips that spring back into place behind the plasterboard or which ever surface your are fitting them to,this holds the downlights neatly in place giving a nice seal against the ceiling.
2. I am not sure how many LED grille downlights I need for my application can you help?
Yes we can, our sales team are trained to do this. Just use our plan your room form giving all the details of your room and let our team do the rest, we will work out how many you need and the best LED downlight for your application.
Application for retrofit cob led grille recessed light :
