Product Details:
Payment & Shipping Terms:
|
Light Source: | LED 6x6W | Item Type: | LED Illumination Lights Wall Washers |
---|---|---|---|
LED Type: | RGBW 4in1 Power LED | Warranty(Year): | 3 Years |
Input Voltage(V): | 24VDC | Operating Temperature: | -20℃~ 40℃ |
Light Window: | Tempered Glass. T=3mm | IK Rate: | IK05 |
Bracket: | 12# Die-casting Powder | Typical Consumption(W): | 48W |
Highlight: | indoor led lighting,illuminator led lights |

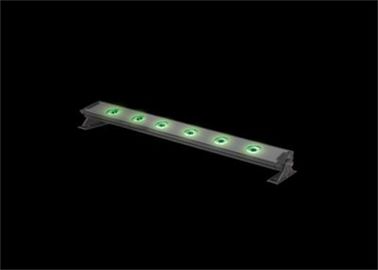

Red Green Blue White 4 color in 1 LED Illumination Lights IP67 Outdoor Wall Washers
Quick details,
1) Housing: Extruded aluminum,powder coated
2) Lens: Optical lens. efficiency≥85%
3) Light Window: Tempered glass. T=3mm
4) Cable: IP-68 PG-13.5
5) Gasket: Glass and housing are silicone sealed
6) LED: RGBW 4in1 power LED
7) Operating temperature: -20℃~ 40℃
8) Bracket: 12# Die-casting powder
9) Power cable: Input: waterproof plug connector
10) Output: waterproof socket connector 2×H07RN-F 5×1.5mm2 L=0.25m
Product Description,
Phenson LED Wall Washer light adopt Brand LED as light source, tempered glass, aluminum 6063 for lamp body. There are different size and color options available for customers's various needs. IP67 outdoor waterproof, widly applicated in different lighting project. Super slim , good heat-dissipation and nice appearance warmly welcomed by different customers.
Item Name | LED Wall Washer / LED Linear light/LED Illumination Lights |
Input Voltage | DC 24V |
LED power | 6x6W |
Housing Material | LED + LEDLINK LENS + Tempered Glass + Aluminum body |
Color Options | Red,Yellow,Blue,Green,Violet,Pink,White,RGB ETC. |
Length Options | 0.6M / 1M / 1.2M (other length can be customized) |
Size (1M type) | 525x85x73 mm |
Beam Angle | 15° / 30° |
Certificates | CE, ROHS |
Warranty | 3 years |
Packaging & Shipping
Each LED Wall Washer go into one carton box. 4 pcs go into a bigger box. With foam-rubber cushion for protection . Delivery by Sea/Air/Express.
Application
Wall Washer are widely applied in outdoor lighting
1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
