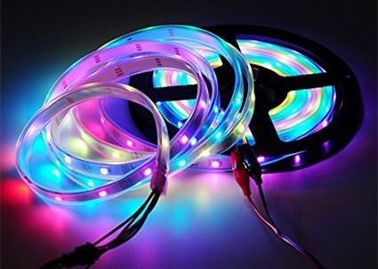

Non Waterproof 5m Led Multi Color Changing Rope Lights 16.4ft 150 WS2812B White PCB

Non Waterproof 5m Led Multi Color Changing Rope Lights 16.4ft 150 WS2812B White PCB
Non Waterproof 5m Led Multi Color Changing Rope Lights 16.4ft 150 WS2812B White PCB Non Waterproof 5m Led Multi Color Changing Rope Lights 16.4ft 150 WS2812B White PCB

Large Image :  Non Waterproof 5m Led Multi Color Changing Rope Lights 16.4ft 150 WS2812B White PCB

Product Details:
Place of Origin: Shenzhen China
Brand Name: Phenson
Certification: CE Rohs
Model Number: SK9822 DC5V 30pcs/m,60pcs/m,144pcs/m
Payment & Shipping Terms:
Minimum Order Quantity: 5m
Price: negotiable
Packaging Details: 5m/reel
Delivery Time: 8-15 days
Payment Terms: T/T
Supply Ability: 1000000m/month
Detailed Product Description
Package: 5m/reel Pcb Color: White /black
Cutable: Yes IC Type: WS2812B
Voltage: 5V Lead Frame Color: White /black
LED Type: 5050 Color Change Color: Addressable Full Color
High Light:

led multicolor strip lights

,

programmable led rope lights

Non Waterproof 5m Cutable Magic Color Digital LED Strip Lights 16.4ft 150 WS2812B White PCB



Features :
Individually Addressable
Using a programmable controller , you can program every led just as you like. Every one has its own IC chip.One IC controlls one led.The chip is built in led.

●Bright
HURT YOUR EYES BRIGHT.

●Cuttable
Every led can be cut off,led strip still working after it is cut. Cut it to the length you just need.

●Adhesive
They(IP30 ,IP65) has 3M adhensive tape on the back.You can paste it on the bookcase, TV, wine cabinet, ceiling, windowsill easily .IP67 has NO adhesive on its back.

●Colorful
Red ,Green, Blue .Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software

●Long life
Life span:more than 50000hrs

Parameter :

Model PS5050-S30MRGB IC WS2812B
Voltage DC5V Drive mode Constant voltage
Input current 60 mA IP rate IP 20 ------
Light source SMD5050 IP 65 PU/silicone glue
LED Qty 30leds/M , 150leds/reel IP 68 Silicon tube + silicon glue
Power 7.2W/M Connector JST-SM connector
Material FPCB/Copper Parallel lines
CCT/WL / / Viewing Angle 120°
/ / Dimension 5000*10*2.3mm
/ / Back Tape 3M adhesive tape
R 620-625nm Operating temp. -40~60℃ (-40°F~+140°F)
G 520-525nm Storage temp. -40~60℃ (-40°F~+140°F)
B 460-465nm Warranty 2 years





Description :

  • Individually Addressable.Dream full color Programmable LED Strip,WS2812B LED IC Built in 5050SMD.256 brightness display and 24-bit color display.
  • FPCB, JST-SM connectors on both ends for easy installation
  • Works great with Arduino and is easy to program. The addressable IC is built-in the 5050SMD.Each pixel can have its own color and brightness as your wish. Can be cut each 5050SMD individually, and will works great without damage
  • DC 5v. Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effects, you can also edit animation effect by Coreldraw/Flash/LedEdit software.
  • Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration,It has adhesive glue on the back, so you can stick it to the wall or other items conveniently as you like.
Product parameters and specifications:

●Model: WS2812B 150 pixels LED strip
●Gray level: 256
●View angle: 120°
●Input voltage: DC5V
●Color: full color 24-bit
●FPCB board color:White
●Power:9W/m 0.3W/led 30leds/m
●Standard Reel Length:5meter/roll
●Model: WS2812 strip 5050 Magic RGB Strip

●Operating Temperature:-20 ~ +40°C
●Led Qty: 150pcs RGB SMD 5050 per meter
●Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm
●Waterproof level:IP20 non-waterproof (IP65 IP68 optional)

Precautions
●Using voltage DC5V ,higher than 6V will destroy it.
●If you need better led strip performance, you can use an Android/IOS bluetooth controller or a programmable controller K-1000C .
● It is better to add DC5V voltage every 16.4ft, because the LEDs at the far end of the strip might be dimmer due to the added resistance and voltage drop that occurs as the current flows to that end of the strip.


Non Waterproof 5m Led Multi Color Changing Rope Lights 16.4ft 150 WS2812B White PCB 0
