Product Details:
Payment & Shipping Terms:
|
| Product Name: | PIR Sensor T8 LED Tube | Lamp Luminous Efficiency: | 100lm / W Or More |
|---|---|---|---|
| Color Temperature(CCT):: | Cool White, Warm White , Pure White | Working Temperature(℃): | -30~+60°C |
| Working Lifetime(Hour): | 50000 Hrs | Certificate: | CE, EMC, ETL, LVD, RoHS, SAA |
| Warranty: | 3 Years | LED: | Epistar 2835 |
| Material: | 6063 Aviation Aluminum+ PC Cover | Beam Angle: | 140° |
| PF: | >0.92 | SMD LED: | 2835 |
| High Light: | led linear high bay light,linear suspension lighting fixtures |
||

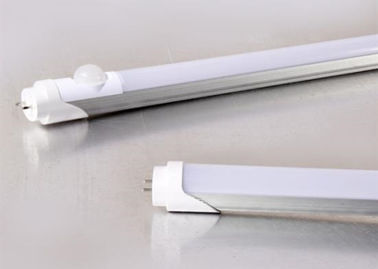

PIR Sensor T8 LED Tube PF >0.92 Beam angle 140° 100LM/W No flicker
Product details,
1,Up to 80% Energy-saving, mercury-free and 100% recyclable, energy saving and environmental protection
2,Constant current internal driver, safety guaranteed
3,High PF value over 0.9 for decrease of electricity loss
4,High quality PCB for good heat dissipation
5,High light efficacy, cost effective
6,No flicker,no delay, Instant on/off
7,Direct replacement for T8 fluorescent tubes is used to quick and easy installation to minimize retrofit and maintenance costs
8,Widely used in factories, car parks, supermarkets, offices and other public places is best retrofit for , Osram, Panasonic T8 fluorescent lamp
Parameter :
| Model | Size (mm) | Watt | Input Voltage | SMD LED | Material | PF | CRI | Cap | Beam Angle | Light efficiency |
| T8-60CM-10W-S | φ26*588 | 10w | AC85-265V | SMD2835 | 6063 aviation Aluminum+ PC cover | >0.92 | >80 | G13 & G5,rotatable cap optional | 140° | 100LM/W ormore higher |
| T8-120CM-18W-S | φ26*1198 | 18w | AC85-265V | SMD2835 | 6063 aviation Aluminum+ PC cover | >0.92 | >80 | G13 & G5,rotatable cap optional | 140° | 100LM/W or more higher |
| T8-150CM-25W-S | φ26*1498 | 23w | AC85-265V | SMD2835 | 6063 aviation Aluminum+ PC cover | >0.92 | >80 | G13 & G5,rotatable cap optional |
Installation steps,
Warning: Switch off power supply BEFORE COMMENCING WORK!
Step1. Remove the fluorescent lamp.
Step2. Cut off all wires which connected to inductive ballast or electrical ballast.
Step3. Install LED tube into lighting fixture with below one(Type I or Type II) wiring method refer to the label on the tube.
Step 4.Switch on power.
Application,
