Product Details:
Payment & Shipping Terms:
|
| Ra: | 90+ | Luminous Flux: | 1200lm/m |
|---|---|---|---|
| LED Chip Quantity: | 384 Chips/ Meter | Beam Angle: | 180° |
| PCB Width: | 8 Mm | Wattage: | 10 W/m |
| Color Available: | 2700/3000K/4000K/6500K | LED Source: | COB |
| High Light: | dimmable led strip lights,led flexible tape light |
||

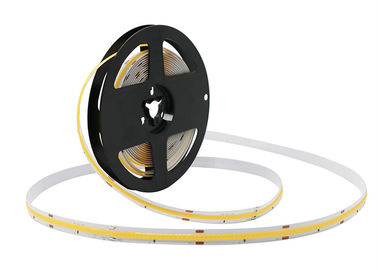

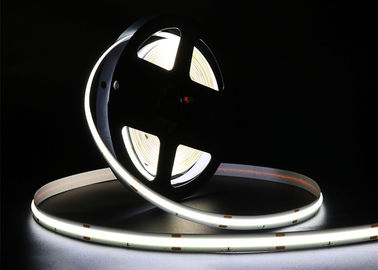

No Shadow Led Flexible Strip Lights 24VDC WW CW PW For Linear Usage 384 LED / Meter
Main characteristics:
| Model No. | PS-COB-384 | |||
| Power: | 10W/ meter | |||
| Input Voltage | 12V/24VDC | |||
| Interval | 31.25/62.5mm | |||
| CCT: | WWPWCW (2700K-6500K) | |||
| CRI: | 80+ and 90+ available | |||
| LED Light output: | 1200lm/m | |||
| Chip Qty: | 384 leds/m | |||
| SDCM: | <3 | |||
| IP Grade | IP20 | |||
| Working Life-span | 50000hours | |||
| Working Temperature: | -40°~+55° | |||
| Storage Temperature: | -25°~65° | |||
Remarks:
The measured power values will be lower than the value on table above. Because it has internal resistance of the FPC. The measured voltage values on the end of FPC will also lower than the one on the beginning side. It is also because of the resistance. When you install the strips, please use the series-parallel connection.
Specifications:
Now shadow COB LED Strip Light
Beam color: white, red, yellow, blue, green,
Beam angle: 180°
Standard length per reel: 5 meters (don’t include the length of wire)
Net weight: 0.155KGS±30 g
Flexible PCB
PCB color: white
External power supplier
Voltage requirement: DC24V
Power output type: constant voltage
IP grade: IP20
3M adhesive tape backside
Anti-static bag packing
3 years warranty
Application,
