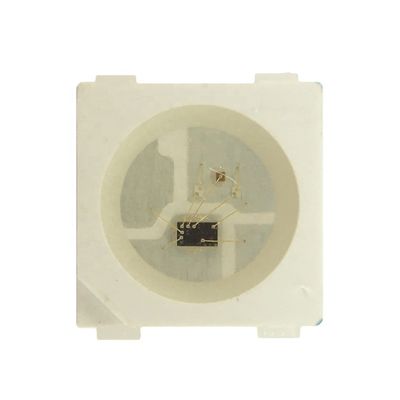

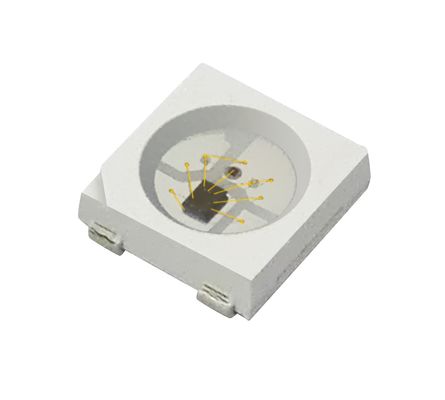

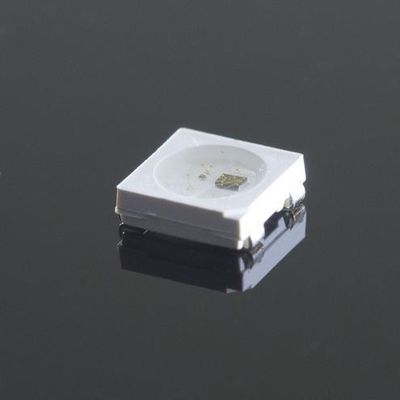

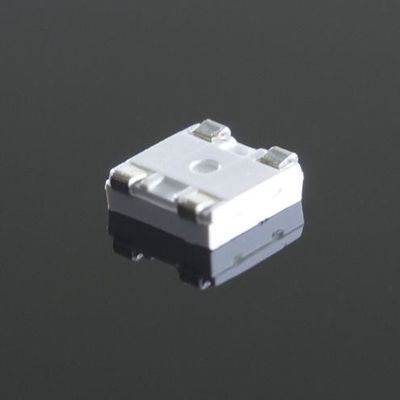

RGB 5050 SMD LED Diode 4 Pins

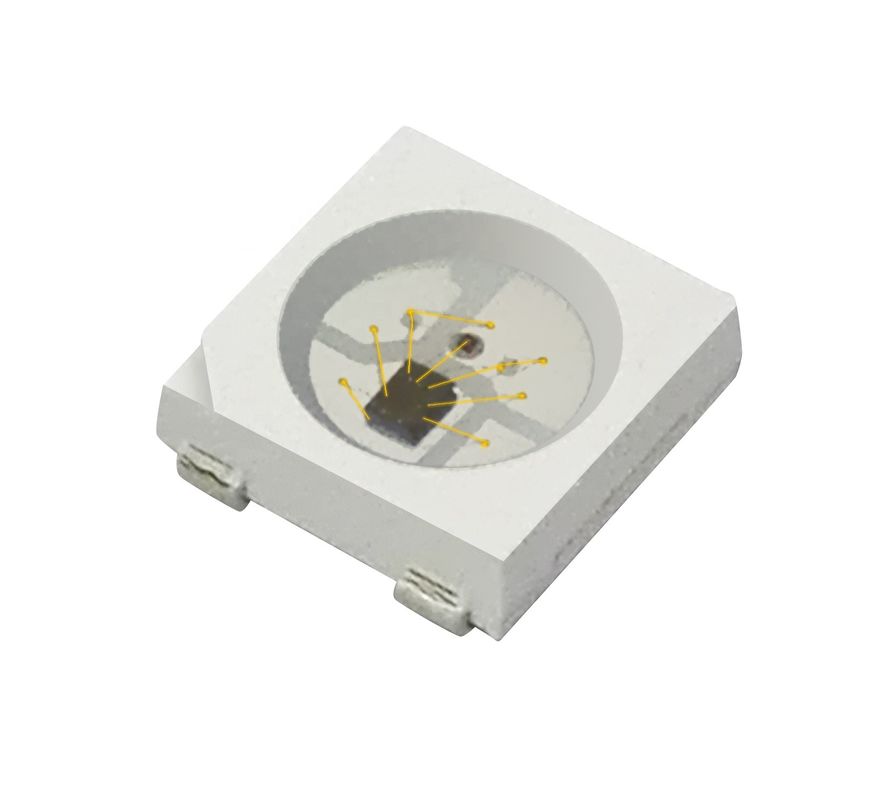

Large Image : RGB 5050 SMD LED Diode 4 Pins

Product Details:

Place of Origin:	China
Brand Name:	Phenson
Certification:	CE Rohs
Model Number:	IC Built In LED

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiable
Packaging Details:	Carton box, capacity 5 or 10 reels per box
Supply Ability:	100kk/month

Contact Now

Detailed Product Description

Type:	SMD LED	Lighting Solutions Service:	Digital LED Application
Emitting Color:	Digital RGB	Power:	0.3W
Power Supply:	DC	Working Lifetime(Hour):	5000
Application:	IOT, Hotel	CRI (Ra>):	75
Highlight:	RGB 5050 SMD LED Diode , SMD LED Diode 4 Pin , RGB LED Diode 4 Pin

PS2812B 5V RGB SMD5050 Addressable 4Pins Full Color LED Chip

Quick Details

Light Source	LED
Input Voltage(V)	5V
Lamp Luminous Flux(lm)	15
CRI (Ra>)	75
Working Temperature(℃)	-25°C--85°C
Working Lifetime(Hour)	50000
IP Rating	IP 20
Model Number	WS2812B-V5
Application	IOT, Hotel
Power Supply	DC
Lighting Solutions Service	Digital LED Application
Type	SMD LED
Emitting Color	DIGITAL RGB
Power	0.24W/pcs
Refresh Frequency	2KHZ
Contorl IC	PS2812B LED Chip
View Angle	120°
Luminous Efficacy(lm/w)	90
Selling Units	Single Item
Single Package Size	23X17X5 cm
Single Gross Weight	0.300 kg
Package Type	1000 Pcs/ Reel with an Anti-static Bag in Carton Box

Descriptions

WS2812B is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components.It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a voltage programmable constant current contol part,effectively ensuring the pixel point light color height consistent.

 The data transfer protocol use single NZR communication mode. Afer the pixel power-on reset, the DIN port receive data from contoller,the first pixel collect initial 24bit data then sent to the internal data latch,the other data which reshaping by the intemal signal reshaping amplification circut sent to the next cascade pixel trough the DO port.Afer transmission for each pixel,the signal to reduce 24bit.pixel adopt auto reshaping transmit tchnology,making the pixel cascade number isnot limited the signal transmission,only depend on the speed of signal transmision. 

RESET time>280μs, it won't cause wrong reset while interuption, it supports the lower frequency and inexpensive MCU  Refresh Frequency updatesto 2KHz. Low Frame Frequency and No Flicker appearin HD Video Camera, it improve excelent display effect.

 LED with low driving voltage,environmental protection and energy saving, high brightnessscattering angle is large. good consistency.low power,long life and other advantages.The controlchip integrated in LED above becoming more simpe crcuit, small volume, convenient installation.

Features

● The control circuit and the LED share the only power source. 

● Control circuit and RGB chip are integrated in a package of 5050 components, to form a completeadressable pixel. 

● Bul-in signal rshaping circuit after wave reshaping to the next driver,ensure wave-form distortion not accumulats .

● Built-in electri eset circuit and power lost rset circuit. 

● Each pixel of the three primary color can achieve 256 brightness display,completed 1677216 color full color  display, and scan frequency is of 2KHz. 

● Cascading port transmission signal by single line. 

● Any two point the distance not more than 5m transmssion signal without any increase circuit.

● When the refresh rate is 30fps,cascade number are not less than 1024 pixels.

● Send data at speeds of 800Kbps. 

● The color of the light is highly consistent, cost-ffective.

● No need for external electric components and even the capacitor. 

 Applications

● Full-color module, LED fll-color soft / hard light bar, LED guardrail tube. 

● LED decorative lighting, LED Scren, Indoor / outdoor LED video iregular scren, various electromic products, electrical equipment marquee. 
