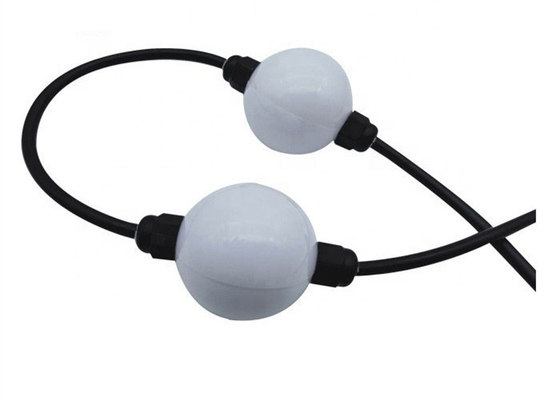

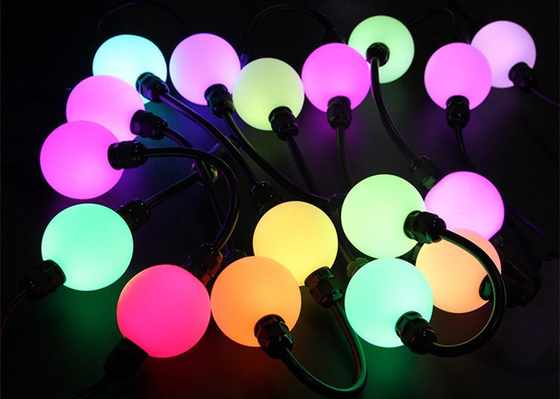

35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light

35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light
35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light 35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light 35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light

Large Image :  35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light

Product Details:
Place of Origin: China
Brand Name: Phenson
Certification: CE Rohs
Model Number: PS-35RGB05WIP67-12V
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 20pcs/strand, 6strands/bag, 10bags/carton packed in anti-static plastic bag carton size: 46.5cm*26cm*46cm
Payment Terms: T/T Paypal, Western Union
Supply Ability: 50kk/month
Detailed Product Description
Housing Color: Milk/transparent Voltage: DC12V/24V
Pitch: 200mm Or Can Be Customized View Angle: 360 Degree
IP Grade: Indoor And Outdoor Available Power: 0.5 W/pcs
Color: RGB Full Color Viewing Angle(°): 360°
Housing Material: PC Warranty: 3 Years
LED Source: RGB SMD5050
High Light:

SPI Control led pixel ball

,

DC12V led pixel ball

,

DMX RGB LED Ball Light

35MM 3D Pixel Led Ball DC12V Spi Control Smd5050 Rgb Led Ball Light Dmx Rgb Sphere Pixel Ball



Specification,

Light Source SMD 5050 RGB
Beam Angle 360 deg
Operating Voltage DC12V/DC24V
Power (w) 1.44W/m
LED Quantity 6leds/pcs
PC Cover Transparent / Milky
Control (IC) WS2801 / DMX512
Diameter (mm) 35mm
Waterproof Rating IP20/IP67
Lumance (MCD) R:4200 G:3600 B:10200
LED Ball Qty 20pcs / string
Note WS2801 :DC 12V
DMX512: DC24V



Product description,

1) 3D effect 35mm led ball pixel light Digital led pixel string for indoor application.
2) Each pixel individually control.
3) clear and milkly cover
4) There is double side 6pcs super bright smd3535 RGB LED inside of each lamp.
5) Waterproof connecotors,wire color can be customized
6) The whole string light is waterproof IP67
7) With controller, it can achieve color fading, skipping, scanning, chasing, and play flash and video, etc
8) 20pcs per chain with 12cm space (standard length) but it can be customized
9) Controller: sd card controller, wifi controller, artnet controller, bluetooth controller, pc controller, etc.



Controller systerm 1,
K-1000C SD controller 2048 Pixels, 3W, DC5-24V
It works with SD card controller.need make the programs you want in the software named LED EDIT, the software is free,then copy the programs to the SD card to play the animations.K1000C can support 2048pixels. we also have 4000C/8000C for more pixels animation

35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light 0



Control systerm 2,
PS-AU-U8 8 *512 Channel USB DMX controller, 3W,AC220V,Online PC music control

It can work with DMX controller,Usually work with Madrix software,which can buy from Germany's website.

U8 has 8ports,Each port support 512 channels and 170pixels, it is online PC control.We also have U2/U4/U16 for the pixes,Regarding to the pixels quantity.



Connection,



35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light 1



35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light 2

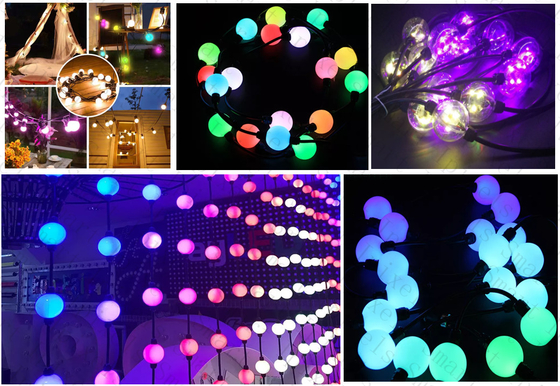

Our cases(3D DMX Ball):

It can be widely used for:
1. hotels, stores
2. KTV entertainment interiors
3. shopping malls decorative lighting
4. garden square green trees
5. commercial lighting in public places such as square and amusement park
6. statues and other decorative lighting

35MM DC12V LED Pixel Ball SPI Control SMD5050 DMX RGB Sphere LED Ball Light 3
