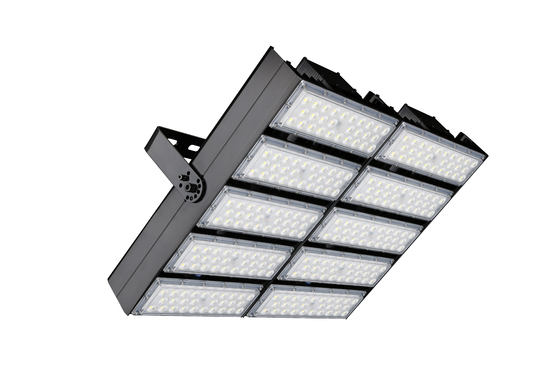

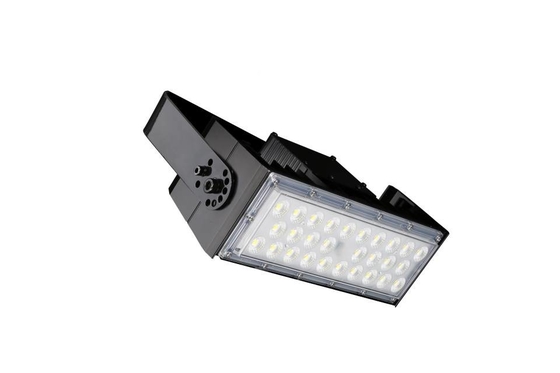

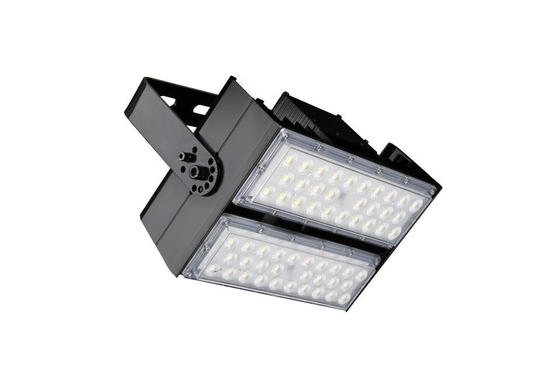

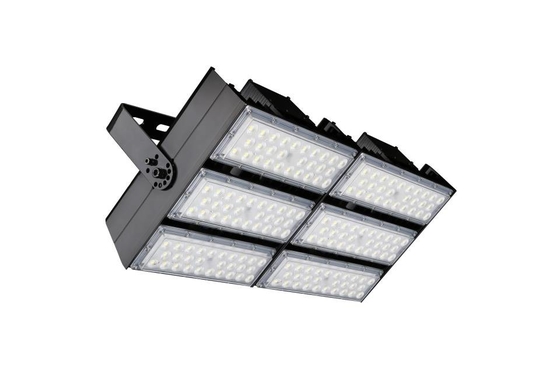

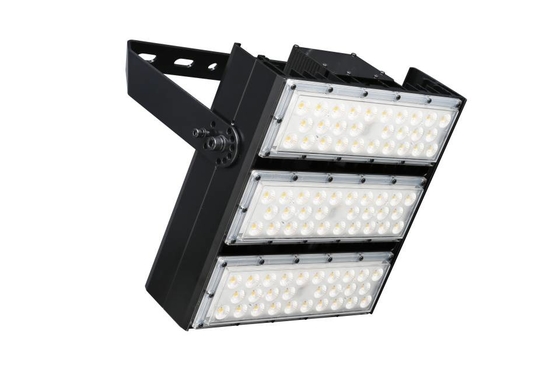

V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing

V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing
V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing

Large Image :  V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing

Product Details:
Place of Origin: CHINA
Brand Name: phenson
Certification: CE ROHS
Model Number: PS-HB06B01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotaible
Packaging Details: 10pcs percarton
Payment Terms: T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Power Factor: >0.95 Working Voltage: 90-305V / 249-528V AC, 50/60Hz
LEDS: 5050 LED CRI: >70(>80,>90 Optional)
Luminous Efficiency: 175±5 Lm/w IP/IK Rate: IP66/IK10
Lifespan: >50,000 Hours Working Temperature: -40°C~50°C, 20%~90% RH
High Light:

Anti Corrosion LED Modular Flood Light

,

Alloy Housing LED Modular Flood Light

V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing

Main Features:

High pressure die-cast aluminum alloy housing.

Anti-corrosion with electrophoresis process.



High performance design with multi-chips package 5050 LED source and

exclusive Lens to stable performance,low light failure and NO dead lights.

The light transmittance up to 98%.Luminous efficacy up to 170-180lm/w.

25°,40°,60°,90°,145x100°,150° for option,Uniform light distribution

apply to different industrial light project.

Excellent operating temperature -40°C ~ 50°C

100° adjusted angle available for outdoor & indoor lighting application.

Green product,no UV,IR radiation or mercury pollution Passed IEC62471.

With excellent housing design reach IP66/IK10 rating.

Installation method is option by wall mounted & pole mounted

0-10V,DALI system,Microwave motion upon request.

ISO9001,ISO14001,CB,IK10,IP66,LM-80 approved.

Life-span over 50,000 hours,5 years warranty.

Parameter :
Model PS-HB06B01 PS-HB06B02 PS-HB06B03 PS-HB06B04 PS-HB06B05 PS-HB06B06 PS-HB06B07 PS-HB06B08
Power 50W 100W 150W 200W 250W 300W 400W 500W
Power Efficiency 88% 90% 90% 90% 90% 90% 90% 90%
Power Factor >0.95
Power Supply MOSO/MEANWELL
Working Voltage 90-305V / 249-528V AC, 50/60Hz
LEDs 5050 LED
CRI >70(>80,>90 optional)
Luminous Efficiency 175±5 lm/w
LEDs Qty 28pcs 56pcs 84pcs 112pcs 140pcs 168pcs 224pcs 280pcs
Luminous Flux(±5%) 8750lm 17500lm 26250lm 35000lm 43750lm 52500lm 70000lm 87500lm
CCT 3000K/4000K/5000K/6000K
Beam angle 25°/40°/60°/90°/145x100°/150°
IP/IK Rate IP66/IK10
Lifespan >50,000 Hours
>50,000 Hours 100°
Housing Material Aluminum6063-T5
Lens Material PC
N.W.(KG) 2.2 3.6 4 5 6 9 11 13
Light size (mm) 260x85x174 260x168x174 260x260x174 260x350x174 440x260x174 520x260x174 520x360x174 520x440x174
Packing Dimension (mm) 310x285x150 330x310x150 310x310x150 400x310x175 490x310x170 570x310x210 570x400x210 570x490x210
Working Temperature -40°C~50°C, 20%~90% RH
Storage Temperature -45°C~55°C,10%~90% RH

V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 0











V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 1V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 2



V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 3





V6B series LED modular flflood light are ultimate
replacement light fifixtures.
Has been developed to ensure maximum
energy efficiency in combination with modern
technologies in LED lighting innovation.

V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 4




V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 5



V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 6V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 7V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 8V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 9V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 10V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 11

Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.



Warranty terms

1. 3/5 years warranty.

2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents

3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.



FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.

And if you have the tech to make design yourself , we can provide the IES files for you.



Q5.I have a street/high way ,what's your suggestion?

Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.

V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 12V6B Series LED Modular Flood Light IP66 IK10 Anti Corrosion Aluminum Alloy Housing 13
