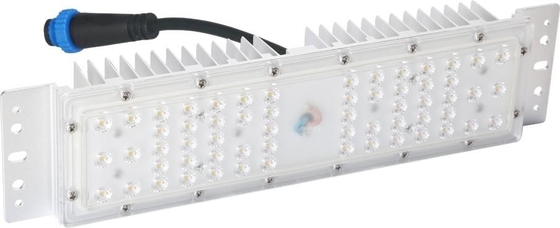

180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting

180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting
180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting

Large Image :  180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting

Product Details:
Place of Origin: CHINA
Brand Name: PHENSON
Certification: CE ROHS
Model Number: PS-M14
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotaible
Packaging Details: 10pcs per carton
Payment Terms: T/T
Supply Ability: 10000PCS/month
Detailed Product Description
LEDs: 3030 LED CRI: >70(>80,>90 Optional)
IP Rate: IP66 Working Environment: -40℃~50℃,20%~90% RH
Storage Temperature: 45℃~55℃,10%~90% RH Connector Size: M15
High Light:

125lm / W LED Illumination Lights

,

Anodizing Aluminum LED Heat Sink Module

,

3030 LED Heat Sink Module

180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting





Main Features :

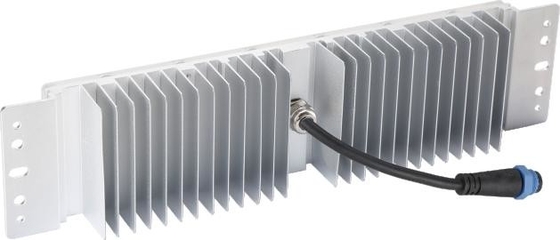

Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.



Excellent operating temperature -40°C ~ 50°C.

High performance design with multi-chips package 3030 LE D source.Stable

performance,low l ight fai lure and NO dead l ights.

Variety beam angles,150x70°,145x100°,24°,36°,60°,90°.

High safet y,low voltage input voltage i s safe for people, whi ch effec ti vel y

prevents electric shock and electric leakage.

Easy to assemble and maintain with national standard M15 electrical interface,

achieved plugged and play,only need loosening the screw during maintenance.

Green product,no UV,IR radiation or mercury pollution.Passed IEC62471.

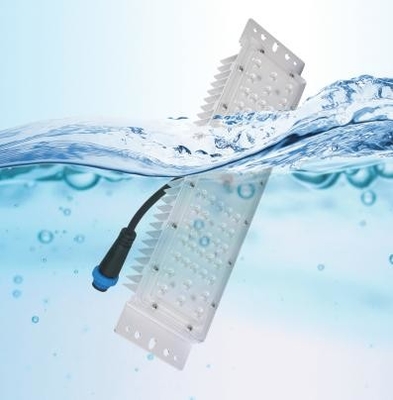

With excellent housing design reach IP66 rating.



Life-span over 50,000 hours,5 years warranty.






180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 0


Parameter :



Name Nominal Value
Model PS-M14
Power 30W 40W 50W 50W 60W 60W
Input Voltage 36V 36V 42/48V 30/36V 42/48V 30/36V
Output Current 0.83A 1.11A 1.20/1.04A 1.67/1.39A 1.43/1.25A 2/1.67A
LEDs 3030 LED
CRI 70(>80,>90 optional)
LEDs Qty 42pcs 42pcs 56pcs 60pcs 56pcs 60pcs
Luminous Efficiency 145lm/w 135lm/w 135lm/w 135lm/w 125lm/w 125lm/w
Luminous Flux(±5%) 4350lm 5800lm 6750lm 6750lm 7500lm 7500lm
CCT 3000K/4000K/5000K/6000K
Beam Angle 150x70°,145x100°,24°,36°,60°,90°
IP Rate IP66
Working Environment -40~50,20%~90% RH
Storage Temperature -45~55,10%~90% RH
Body Material Aluminum AL6063-T5
Lens Material PC
Connector Size M15
Module Size(mm) 300x70x37.5
Lifespan >50,000 Hours
40PCS/CTN 555x330x365mm
N.W.(KG) 0.5KG/pcs



180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 1180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 2
180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 3180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 4


rading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.
2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.

Quality Control
1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.

FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.

Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision

Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.

Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide the IES files for you.



180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 5180lm / W LED Panel For Street Lighting ,High Bay Lighting And Road Lighting 6


Our services contain the all LED lighting industry chain: LED package to LED lighting, optical lens design to LED lighting solution provide. Depending on the parent company’s R& D advantage,we have perfected intellectual property control system, R&D control mechanism in the initial period. We keep the idea of high quality first all the time,offering LED outdoor lighting products,module products,sport lighting,industrial lighting,smart lighting controlling system to customers. Products have been approved ENEC,CB,ETL,CE,Rohs,LM79,LM80 etc authorized certificates & reports, We have been listed in Guangdong province LED Benchmarking system, Government Energy-Saving product purchased company.
