Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Power Digital LED Module | Input Voltage(V): | 5VDC |
|---|---|---|---|
| Emitting Color: | RGB | Size: | 35*25 |
| IC Type: | SPI / SM16714 | Power: | 4W |
| High Light: | 4w LED Christmas Light,35*25mm LED Pixel,Addressable RGBW LED Pixel |
||
Addressable RGBW 35*25mm LED Pixel DC5V 4w Led Christmas Light
Specification,
| Item Type | Addressable led module |
| Model Number | PS-032001MA4SD6 |
| Light Source | LED |
| Lighting solutions service | Lighting and circuitry design |
| Input Voltage(V) | DC5V |
| Lamp Luminous Flux(lm) | R: 51lm G: 76lm B: 20lm W:102lm |
| Working Temperature(℃) | - 40 ~ 50 ℃ |
| Working Lifetime(Hour) | 50000 |
| IP Rating | IP65 |
| Emitting Color | RGBW |
| Place of Origin | GUA |
| Brand Name | Phensonlighting |
| Application | Theme Park |
| Color Temperature(CCT) | RGBW |
| Warranty(Year) | 2-Year |
| Light Source | Imitation lumen lamp beads |
| Beam Angle | 140° |
| Control | SPI / SM16714 |
| PCB color | Black |
| Size (mm) | 35*25 |
Product Description

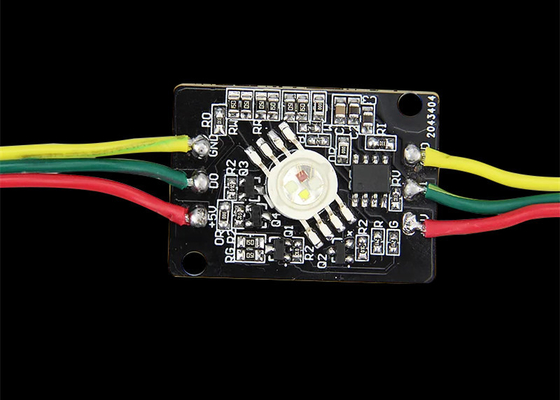

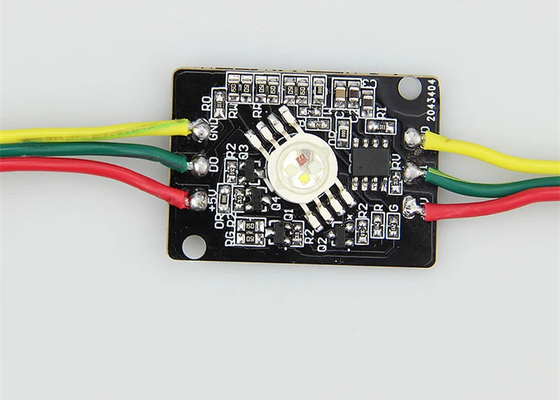

This is a super bright RGBW LED mounted on a Aluminum
board backside without a 3M stick ,suggested to install on
any plate for heat disspation,2 pcs M3 mounting hole on
each conner WS2811 control ,it's working with any SPI controller or a DMX decoder
constant voltage working, there are 3 pads on each
side of board do not confuse the Data in and Data out

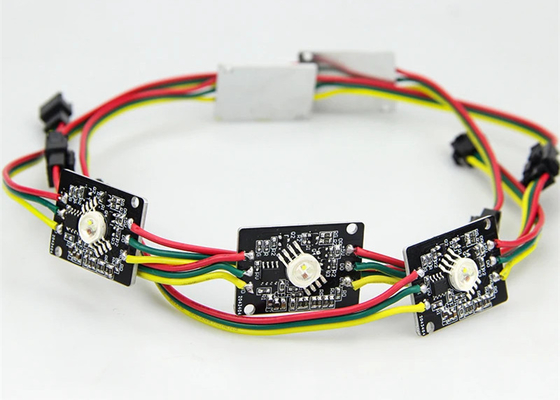

each module contains a pair of JST connector and packed by An-ti static bag
