Product Details:
Payment & Shipping Terms:
|
| Input Voltage(V): | DC12V | Color: | RGB |
|---|---|---|---|
| LED Qty: | 60pcs | IC Type: | WS2815B |
| PCB Width: | 10mm | Power: | 7.2W/m |
| Roll: | 5 Meter/ Reel | PCB Color: | White/black |
| High Light: | DC12V LED Strip Flexible Tape,IP20 LED Strip Flexible Tape,60Pixel LED Strip Flexible Tape |
||
WS2815 SMD5050 IP20 60led 60Pixel RGB WS2815b IC DC12V Digital Dual Signal Line Led Strip Flexible Tape
WS2815 Led Strip Specification,
| Place of Origin | Shenzhen ,China |
| Application | Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation |
| Warranty(Year) | 2-Year |
| Brand Name | Phenson |
| Model Number | PS-WS2815DC12V 5050 60leds |
| IP Rating | IP20/IP65/IP67/IP68 |
| LED Quantity | 60leds/meter |
| Input Voltage(V) | DC12V |
| Working Lifetime(Hour) | 50000 |
| Working Temperature(℃) | -25-65℃ |
| Certification | CE, RoHS |
| Light Source | LED |
| PCB width | 10mm |
| LED Type | SMD5050 RGB |
| IC Type | WS2815B |
| IC QTY | 60pcs/M |
| Length | 5m/roll |
| Waterproof | IP20/IP65/IP67 |
| Beam angle | 120 degree |
WS2815B Digital Strip Main features ,
1.It is used pixel led 2815B and 60led/m, power is 7.2W/m ,10mm PCB , 1 led cuttable (16.67mm) and DC12V
2. Use the most flexible FPC as the base material. FPC has good electrical conductivity, fast heat dissipation, resistance to bending, and can be bent into any shape.
3. Use SMD5050 lamp beads and external WS2815 driver chip to realize addressable and programmable digital light strips
4. Any animation effect of the product can be realized through controller programming.
5.It is WS2815 led built-in IC ,one IC control one led and break-point continued , and it can be programmable .Signal break-point continuous transmission if one led is defective , the following leds can still work and are not affected.

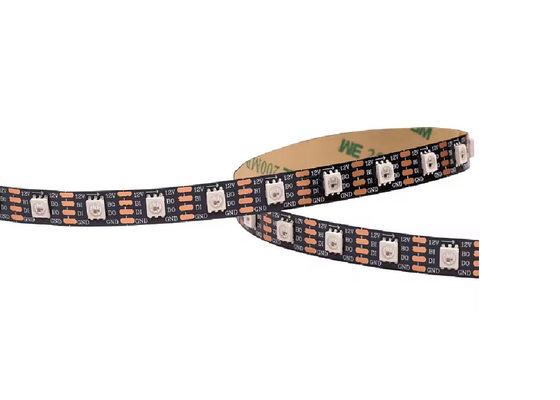

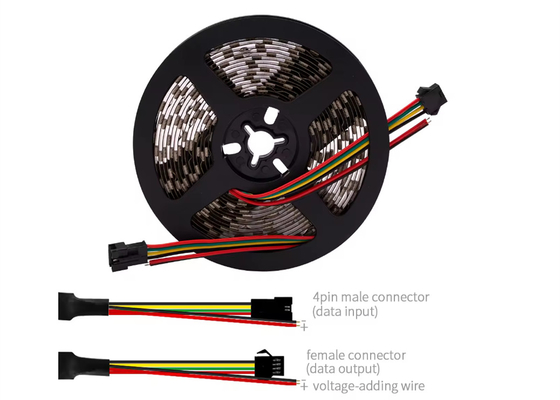

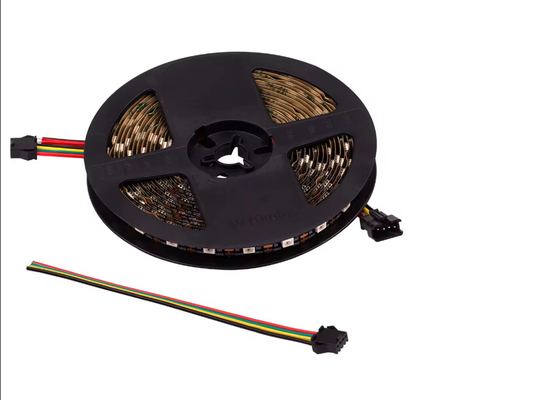

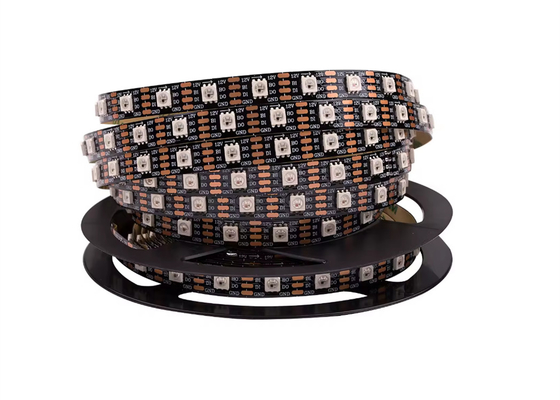

WS2815B Strip Details,
Application ,
Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation
