24V SMD 2835 Ultra-Thin White LED Lighting Sheet Industrial Flexible Waterproof Cuttable Flex Backlighting Panel

Large Image : 24V SMD 2835 Ultra-Thin White LED Lighting Sheet Industrial Flexible Waterproof Cuttable Flex Backlighting Panel

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Phenson
Certification:	CE/ROHS FCC
Model Number:	PS-FL2835

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	12X12X5 cm
Delivery Time:	3-5 days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Product Name:	DIY LED Sheet Backlight	Color:	Warm White / White / Cool White
Power:	40W	LED Chip:	SMD2835 Chip
Size:	240x480mm	Application:	Office Home Workshop Supermarket House

24V SMD 2835 Ultra-Thin White LED Lighting Sheet Industrial Flexible Waterproof Cuttable Flex Backlighting Panel

Product Paramenters

Model No	PS-FL2835
Working Voltage	24V
Power (W/pc)	40W/m
LED Qty/pc	288LEDs/pc
CRI	80,90
Min. Cutting	One Led per cutting

Product Features:
1. Easy installation with cut-to-connect function
2. Plug-and-play connection system for quick and easy construction
3. Customized CCT, wattage, voltage, lumen, shape, size, etc. (with MOQ)
4. Single/dual/multi-color/digital optional;
5. Suitable for advertising, counter and bar tops, curved surfaces

LED Panel Flex
Cuttability allows you to remove the LEDs from any location on the sheet. LED flexible panels are suitable for flat surfaces of almost any size and shape, such applications include display screens, ceilings, feature walls, counter and bar tops, elevators, floors and more.

Installation Instructions:
1. Clean the surface you plan to install the flexible panel
2.DIY the flexible panel to the desired shape, peel off the 3M adhesive backing, and stick it to the surface
3. Plug the LED light sheet into a compatible 24V DC power supply or dimmer

Product images,

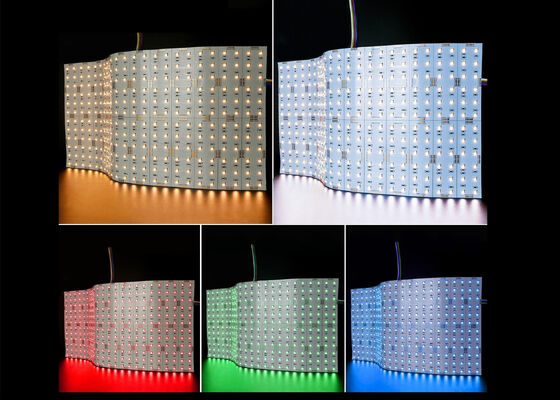

24V SMD 2835 Ultra-Thin White LED Lighting Sheet Industrial Flexible Waterproof Cuttable Flex Backlighting Panel 0

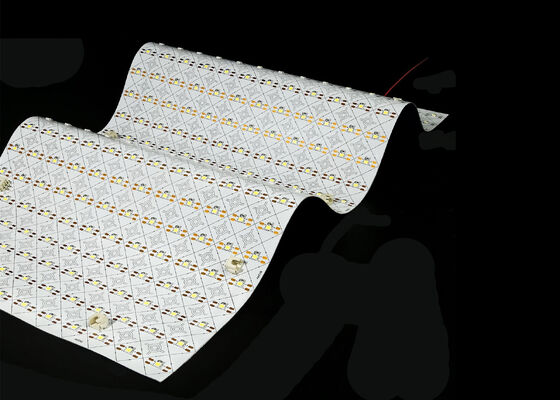

24V SMD 2835 Ultra-Thin White LED Lighting Sheet Industrial Flexible Waterproof Cuttable Flex Backlighting Panel 1

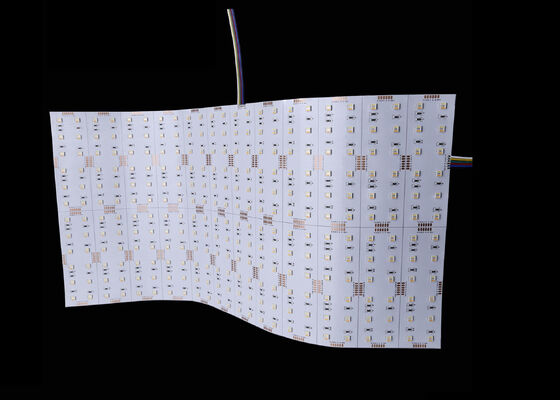

24V SMD 2835 Ultra-Thin White LED Lighting Sheet Industrial Flexible Waterproof Cuttable Flex Backlighting Panel 2
