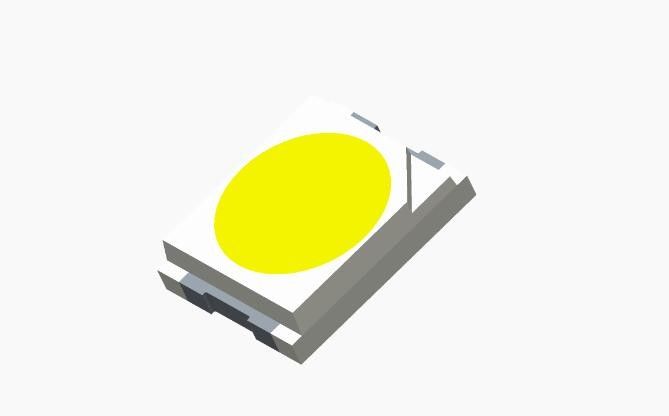

300mA SMD LED Light Emitting Diode PCT 2835 With High Heat Resistance

300mA SMD LED Light Emitting Diode PCT 2835 With High Heat Resistance
300mA SMD LED Light Emitting Diode PCT 2835 With High Heat Resistance

Large Image :  300mA SMD LED Light Emitting Diode PCT 2835 With High Heat Resistance

Product Details:
Place of Origin: china
Brand Name: Refond
Certification: Rohs
Model Number: PCT 2835 Series
Payment & Shipping Terms:
Minimum Order Quantity: 4000pcs
Price: Negotiable
Packaging Details: 4000pcs/reel
Supply Ability: 100kk/month
Detailed Product Description
Brightness: 79-118 Lm Voltage: 2.8-3.6V
Package: 4000pcs / Reel Brand: Refond
Color: White Viewing Angle: 120 Degree
Size: 3.5* 2.8* 0.6 Mm IF: 300 MA
Name: 2835 LED Material: PCT Lead Frame
High Light:

smd led diode

,

light emission diode

PCT 2835 Series 300mA White SMD LED Light Emitting Diode For Back Lighting

Feature :

1. Dimension(length*width*height: mm): 3.5* 2.8* 0.6 mm

2. High heat resistance, low thermal resistance, high reliability

3. Light color consistency is good, high color gamut

4. High light efficiency, high brightness, high current drive

5. Lead-free package, in line with Rohs

6. For all SMT assembly and welding process

7. Package 4000pcs/reel

8. PCT lead frame

9. ESD 2000V

Package Dimmension :

300mA SMD LED Light Emitting Diode PCT 2835 With High Heat Resistance 0



Application :

1. Optical indicator

2. Advertising backlight

3. Indoor display

4. Car lighting or backlight

5. Backlight, converter, switch and logo, monitor and so on

6. Automative Lighting

7. Switch ,monitor and general use .

Description :

The white led which was fabricated using a blue chip and phosphor .

Parameter :

Part No. IF (mA) VF (V) LM Watt LM/W CCT (k) NTSC (Type) View angle
RF-TVY*PC23LCN 300 3.2 94 1 94 0.265,0.24 0.72 120°
RF-TVY*PC23RCN 350 3.2 112 1.2 93 0.265,0.24 0.72 120°
RF-TVH*PC23LCN 300 3.2 85 1 85 0.265,0.24 0.88 120°
RF-TVY*PD23LCN 300 3.1 100 1 100 0.265,0.24 0.72 120°
RF-TVD*PD23NCN 400 3.3 135 1.4 96 0.265,0.24 0.72 120°
RF-TVH*PD23LCN 300 3.2 91 1 91 0.265,0.24 0.88 120°

Note:

1. 1/10 Duty cycle, 0.1ms pulse width.

2. The above forward voltage measurement allowance tolerance is 0.1V.

3. The below color coordinates measurement allowance tolerance is 0.003.

4. the above luminous flux measurement allowance tolerance ±10%.

5. Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
6. All measurements were made under the standardized environment of Refond.
7.When the LEDs are in operation the maximum current should be decided after measuring the package temperature,junction temperature should not exceed the maximum rate.LED
