|Color:||White||Viewing Angle:||120 Degree|
|Size:||4.0* 1.45* 0.65 Mm||IF:||90 MA|
smd led diode,
light emission diode

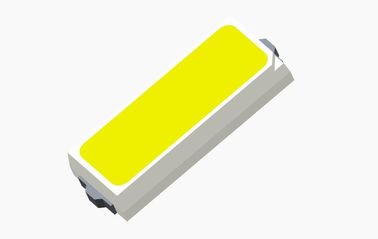

PCT Lead Frame 4014 Series White Color SMD Light Emitting Diode For Back Light
1. Dimension(length*width*height: mm): 4.0* 1.45* 0.65 mm
2. High heat resistance, low thermal resistance, high reliability
3. Light color consistency is good, high color gamut
4. High light efficiency, high brightness, high current drive
5. Lead-free package, in line with Rohs
6. For all SMT assembly and welding process
7. Package 4000pcs/reel
8. PCT lead frame
9. ESD 2000V
10. Long lifetime
11. Moisture sensitivity level 3
Package Dimmension :
1. Optical indicator
2. Advertising backlight
3. Indoor display
4. Car lighting or backlight
5. Backlight, converter, switch and logo, monitor and so on
6. Automative car Lighting
7. Switch ,monitor and general use .
The white led which was fabricated using a blue chip and phosphor .
|Part No.||IF (mA)||VF (V)||LM||Watt||LM/W||CCT (k)||NTSC (Type)||View angle|
1. 1/10 Duty cycle, 0.1ms pulse width.
2. The above forward voltage measurement allowance tolerance is 0.1V.
3. The below color coordinates measurement allowance tolerance is 0.003.
4. the above luminous flux measurement allowance tolerance ±10%.
5. Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
6. All measurements were made under the standardized environment of Refond.
7.When the LEDs are in operation the maximum current should be decided after measuring the package temperature,junction temperature should not exceed the maximum rate.LED
Pass the international benchmarking enterprises and third-party SGS social responsibility audit, in line with EICC electronics industry code of conduct requirements.
In line with ROHS, REACH, HF, IEC / EN 62471, LM-80 and other international standards in Third party testing result.
We use scientific research and innovation as a driving force for development, build the core competitiveness of enterprises, is committed to every customer can get more secure, more environmentally friendly products.
Experimental Center was established in 2013, covers an area of over 600 square meters
December 2015 CNAS certification, included in the national laboratory directory. For the company's technological innovation and product development to provide a complete means of testing, product quality management to provide a wealth of reliable test data.
