Product Details:
Payment & Shipping Terms:
|
| Terminal: | 4 Terminals | LED Type: | 3528 LED |
|---|---|---|---|
| Voltage: | 1.8-3.6V | Brightness: | 2800-6500mcd |
| Color: | White / Red / Yellow / Orange | Viewing Angle: | 120 Degree |
| Size: | 3.5* 2.8*1.85 Mm | IF: | 50 MA |
| High Light: | smd led diode,light emission diode |
||

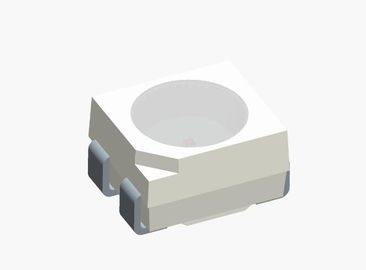

3528 PLCC4 Series White / Red / Yellow / Orange Color Light Emitting Diode For Automotive Exterior Lighting
Feature :
1.Dimension(length*width*height: mm): 3.5* 2.8*1.85 mm
2.View angle 120 degree
3. Light color consistency is good, high color gamut
4.High light efficiency, high brightness, high current drive
5.Lead-free package, in line with Rohs
6.Electrostatic Discharge Withstand Voltage Level ≥2000V / ≥8000V(ESD Protection Device).
7.Package 2000pcs/reel
8.PCT lead frame
9.Moisture Sensitivity Level.2
10Primer process for the gold plating has sulphide protection.
Package Dimmension :
Application :
1. Daytime running light
2. Tail light
3. CHMSL,TSL(Front/Rear),DRL,Fog Lamp,Reverse Lamp.
4. General lighting application
Description :
The product qualification test plan is based on the guidelines of AEC‐Q101 Stress Test Qualification for Automotive Grade Discrete Semiconductors.
Parameter :
| Part No. | IV(mcd) | X/Y/WD(nm) | Vf(V) | If (mA) | View angle |
| RF-YMRA30TS-AC-G | 2800 | 590 | 2.2 | 50 | 120° |
| RF-OMRA30TS-CE-G | 2800 | 620 | 2.2 | 50 | 120° |
| RF-RSRA30TS-CE-G | 2300 | 630 | 2.2 | 50 | 120° |
| RF-WMRA30TS-ED-G | 6500 | (0.33,0.34) | 3 | 50 | 120° |
Note :
1. 1/10 Duty cycle, 0.1ms pulse width.
2. The above forward voltage measurement allowance tolerance is 0.1V.
3. The below color coordinates measurement allowance tolerance is 0.003.
4. the above luminous flux measurement allowance tolerance ±10%.
5. Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
6. All measurements were made under the standardized environment of Refond.
7.When the LEDs are in operation the maximum current should be decided after measuring the package temperature,junction temperature should not exceed the maximum rate.LED
