Product Details:
Payment & Shipping Terms:
|
Application: | Led Lights Outdoor | Warranty Time: | 5 Years |
---|---|---|---|
Mode: | HLB-150H-36A | Waterproof Type: | IP67 |
Rated Power: | 150W | Maximum Output Voltage: | 36V |
PF (Typ.): | 0.96 | Efficiency (Typ.): | 90% |
Brand: | Phenson | Power Supply Type: | Constant Current |
Highlight: | Rohs constant current power supply,meanwell led driver,IP67 meanwell led driver |

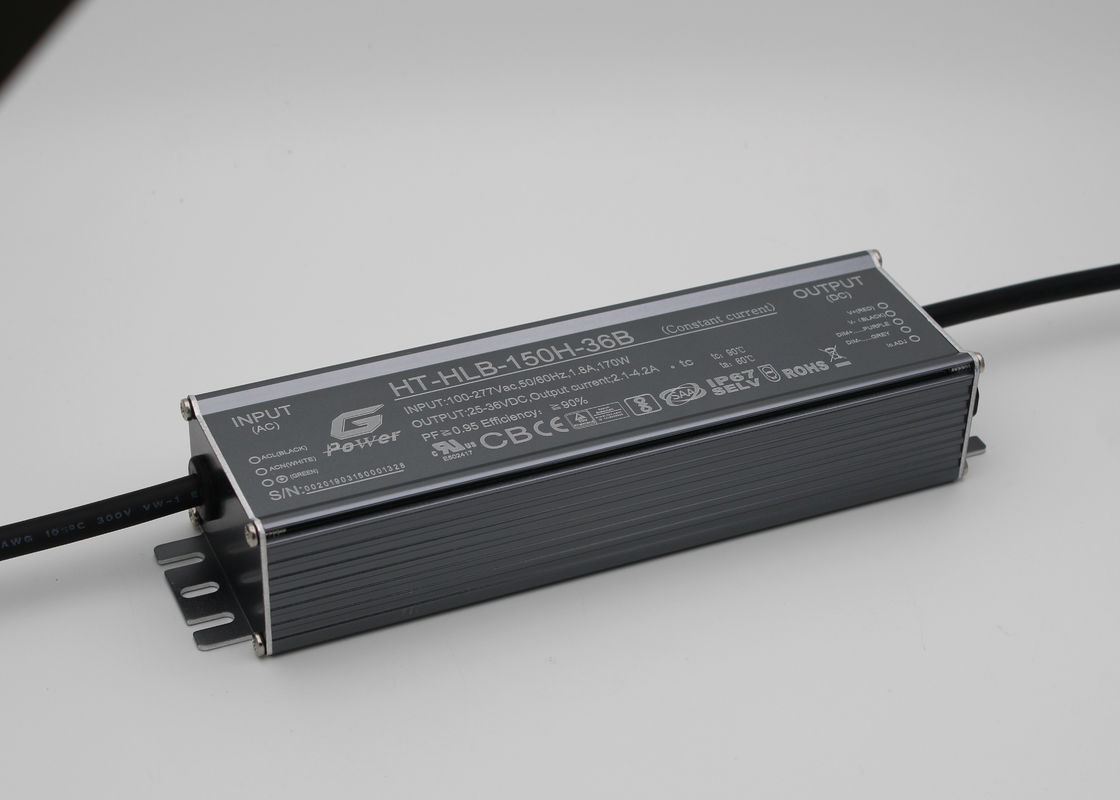

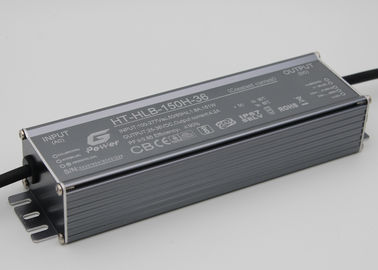

HLB series 150W Outdoor Led Driver Constant Current Power Supply IP67
Model list ,
Model | O/P | O/P | Rated Power | O/P | THD | PF | Efficiency |
Voltage | Current | Current | (Typ.) | (Typ.) | (Typ.) | ||
Tolerance | |||||||
HLB-150H-36A | 25-36V | 4.2A | 151.2W | ±5% | 15% | 0.96 | 90% |
HLB-150H-48A | 36-48V | 3.25A | 151.2W | ±5% | 15% | 0.96 | 90% |
Custom-Tailor | / | / | / | / | / | / | / |
Input Characterstics,
Parameter | Min | Typ. | Max | Remarks |
Rated AC input range | 100Vac | 277Vac | ||
AC input range | 90Vac | 305Vac | ||
Input frequency range | 47Hz | 63Hz | ||
Max input current | 1.8A | 90Vac, full load | ||
Inrush current | 60A | 230Vac/50Hz, cold start | ||
No load power | 1.0W | 1.5W | 230Vac/50Hz, no load | |
Power factor | 0.95 | 0.96 | 230Vac/50Hz, full load | |
0.9 | 100-277Vac/50Hz, 70-100% Load | |||
THD | 15% | 100-277Vac/50Hz, 70-100% Load |
Output Characterstics,
Parameter | Min | Typ. | Max | Remarks | |
Output voltage range | HLB-150H-36 | 25V | 33V | 36V | |
HLB-150H-48 | 36V | 45V | 48V | ||
Custom-Tailor | / | / | / | ||
Rated output current | HLB-150H-36 | 4.2A | |||
HLB-150H-48 | 3.15A | ||||
Custom-Tailor | / | / | / | ||
Current adjustable | HLB-150H-36 | 2.1A | 4.2A | 4.6A | |
range | |||||
HLB-150H-48 | 1.6A | 3.15A | 3.5A | ||
Custom-Tailor | / | / | / | ||
No load voltage | HLB-150H-36 | 38V | 42V | 45V | |
HLB-150H-48 | 50V | 52V | 55V | ||
Custom-Tailor | / | / | / | ||
Efficiency @230Vac | HLB-150H-36 | 88% | 90% | ||
HLB-150H-48 | 88% | 90% | |||
Custom-Tailor | / | / | / | ||
Output current tolerance | -5% | 5% | |||
Output current ripple(PK-PK) | 5% | 10% | Full load | ||
Start-up current overshoot | 10% | ||||
Start-up time | 1S | 2S | 230Vac | ||
Line Regulation | -1% | 1% | Full load | ||
Load Regulation | -2% | 2% |
