Product Details:
Payment & Shipping Terms:
|
| Working Voltage: | AC110V-280V | Part No: | PS-B101 |
|---|---|---|---|
| Beam Angle: | 175° | Color Temperature: | 9000-1200K |
| Lm/Heart: | 120lm | Length: | 500mm |
| LED Qty: | 6pcs | Protection Grade: | IP65 |
| LED Source: | SMD3030 | Produce Name: | LED Backlight Bar |
| Thickness: | 1.2mm | Warranty: | 3 Years |
| Application: | Led Advertising Lightbox | ||
| High Light: | 500mm Length LED Backlight Bar,120lm LED Backlight Bar,SMD3030 Diffuse Reflector Light Strip |
||

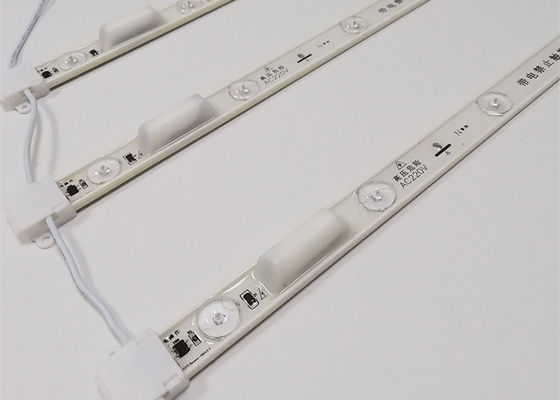

AC High Voltage 110V-280V LED High Pressure Diffuse Reflector Light Strip B101 LED Backlight Bar
Product features:
1. Ac110v-280v mains power input, no switching power supply,
constant current IC drive, high efficiency, no strobe, good
brightness consistency.
2. Fire retardant shell, touchable, safe and reliable, maintenance- free.
3. The light source is SMD3030, which encapsulates three 10*30
luminescent chips with high brightness, low light decay, good
color and long life.

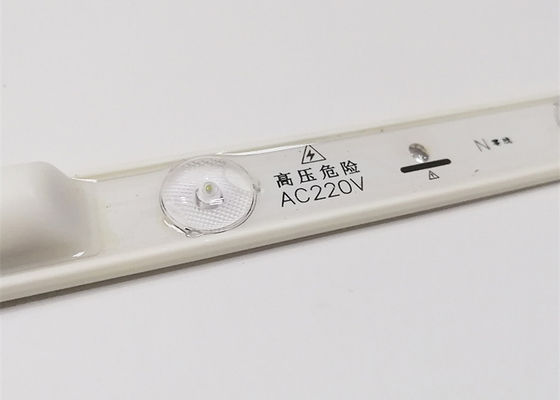

4. 175°TV large Angle diffuse reflection optical lens, uniform
light effect without macular.
5. High thermal conductivity aluminum substrate with a thickness
of 1.2mm provides reliable heat dissipation for light source and
improves product life.
6. 3000W without power continuation, high power efficiency,
easy installation.
| Part No. | CCT | Working voltage | LED source | W/pcs | Lm/Heart | Length(mm) | LED Qty |
| PS-B101-6D | 9000-12000K | AC110-280 | SMD 3030 | 6 | 120 | 500 | 6pcs |
| PS-B101-7D | 9000-12001K | AC110-280 | SMD 3030 | 7 | 120 | 580 | 7pcs |
| PS-B101-9D | 9000-12002K | AC110-280 | SMD 3030 | 9 | 120 | 745 | 9pcs |
| PS-B101-11D | 9000-12002K | AC110-280 | SMD 3030 | 11 | 120 | 915 | 11pcs |
| PS-B101-12D | 9000-12003K | AC110-280 | SMD 3030 | 12 | 120 | 1000 | 12pcs |
