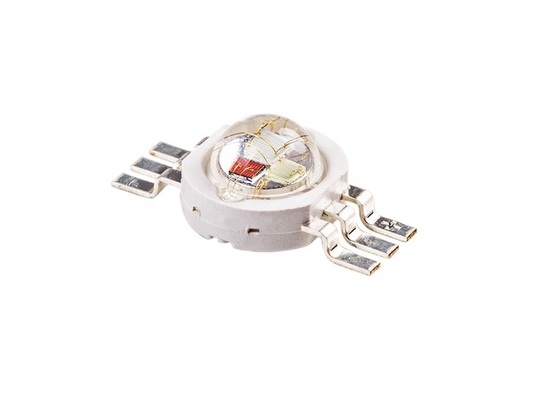

Rgb Led SMD LED Diode 3w Component Chip 120 Degree

Rgb Led SMD LED Diode 3w Component Chip 120 Degree
Rgb Led SMD LED Diode 3w Component Chip 120 Degree Rgb Led SMD LED Diode 3w Component Chip 120 Degree Rgb Led SMD LED Diode 3w Component Chip 120 Degree Rgb Led SMD LED Diode 3w Component Chip 120 Degree Rgb Led SMD LED Diode 3w Component Chip 120 Degree

Large Image :  Rgb Led SMD LED Diode 3w Component Chip 120 Degree

Product Details:
Place of Origin: China
Brand Name: Phenson
Certification: CE Rohs
Model Number: High Power led chip
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: Negotiable
Packaging Details: Carton box, capacity 5 or 10 reels per box
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 100kk/month
Detailed Product Description
Model: 9w High Power RGB LED Chip Luminous Intensity: R:40-50 G:70-80 B:20-30
Viewing Angle(°): 120 Degree Chip Size: 45mil
Forward Voltage: Red:2.2-2.4v;green/blue:3.2-3.4v Golden Wire: 99.99% Pure Golden Wire
Power: 1W 3W 9W Chip QTY: 3
High Light:

3w Component Chip SMD LED Diode

,

Rgb Led SMD LED Diode

,

120 Degree SMD LED Diode

Rgb Led Smd Led Rgb 3w Component Chip Rgb Smd Led



Specification

item value
Input Voltage(V) 6-11
Warranty(Year) 2-Year
Type SMD LED
Support Dimmer Yes
Lighting solutions service Lighting and circuitry design, auto CAD layout
Luminous Efficacy(lm/w) 80
Lifespan (hours) 50000
Working Time (hours) 50000
Product Weight(kg) 0.003
Chip Material AlGaInP
Emitting Color Tri-Color(Red-Blue-Green)
Luminous Intensity R:40-50 G:70-80 B:20-30
Luminous Flux(lm) R:40-50 G:70-80 B:20-30
Optical Attenuation(%) 0.3
Power 1W, 3W, 9W
Power Dissipation 3
Viewing Angle(°) 120
Place of Origin China
Brand Name Phenson
Model 9w High Power RGB LED Chip
Certificate CE, ROHS
Chip QTY 3
Chip size 45mil
Chip Material AlGaInP
Keyword High Power led chip
Forward Voltage red:2.2-2.4v;green/blue:3.2-3.4v
Chip Brand Epileds/epistar
Power 1W/3W/9W
Golden wire 99.99% pure golden wire



Rgb Led SMD LED Diode 3w Component Chip 120 Degree 0

Rgb Led SMD LED Diode 3w Component Chip 120 Degree 1

Why Choose Us
1. Well-known chip material
2. 99.99% gold wire bonding
3. 2 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.



Static Electricity
• Static electricity or surge voltage damages the High Power LED. It is recommended that a wrist band or an anti-electrostatic
glove be used when handing the LEDs.
• A tip soldering iron is requested to be grounded, An ionizer should also be installed where risk of static.
• All devices, equipment and machinery must be properly grounded, It is recommended that measures be taken against surge voltage
to the equipment that mounts the High Power LED.

Heat generation
• When the LEDs are illuminating, operating current should be decided after be considering the ambient maximum temperature.
• Please consider the heat generation of the LED when it is designed the PCB.
• The LEDs must be mounted on metal core PCB or heat sink or applied thermal pad.

Handing LED
Lianxinrui recommends the following at all times when handing LEDs or assemblies containing the these LEDs:
• When handing the LED with tools like Tweezer or Nipper, do not apply Mechanical Forces directly on LED's Surface.
• Do not touch with hand LED Lens surface directly. It may contaminate the Lens surface and affect on optical characteristics.
• LED should be handled from side because LED's molding material may be damaged with scratching on surface, piercing molding
material and broking wire.
