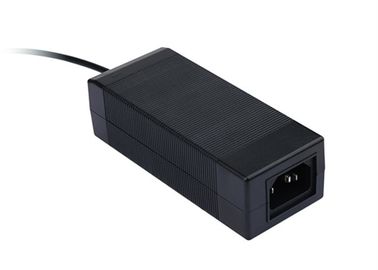

48W Universal AC DC Power Adapter , 50-60hz 24V 2A AC To DC Power Supply Adapter

48W Universal AC DC Power Adapter , 50-60hz 24V 2A AC To DC Power Supply Adapter
48W Universal AC DC Power Adapter , 50-60hz 24V 2A AC To DC Power Supply Adapter 48W Universal AC DC Power Adapter , 50-60hz 24V 2A AC To DC Power Supply Adapter 48W Universal AC DC Power Adapter , 50-60hz 24V 2A AC To DC Power Supply Adapter 48W Universal AC DC Power Adapter , 50-60hz 24V 2A AC To DC Power Supply Adapter

Large Image :  48W Universal AC DC Power Adapter , 50-60hz 24V 2A AC To DC Power Supply Adapter

Product Details:
Place of Origin: Guangzhou,Guangdong ,China
Brand Name: OEM
Certification: CE ROHS
Model Number: PS-2402000
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: PE/Polybag/White box/Blister/ Window box/Customized packaging, 15kg/carton, or as customer requirement.
Delivery Time: 15~20days after payments
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50,000pcs
Detailed Product Description
Input Voltage: 100-240V 50/60HZ Output Power: 48W
Model: PS-2402000 The Case Material: Black Plastic
Output Voltage: 24VDC Output Current: 2A
The Shell Material: Black Plastic AC Plug: US EU UK AU Universal 24V 2A Power Adapter
Working Tempera: -25~+40℃ Input Frequency: 50/ 60Hz
Dimensions: 114*50*30mm Warranty: 2 Years
High Light:

meanwell led driver

,

meanwell switching power supply

CE GS UL FCC RoHS Adaptor 36W AC DC Universal 12V3A Power Adapter



24v 2a adapter

Input voltage: 100-230V 240VAC;50/60Hz.1.6A.
Output power: 24Vdc 2A 48W
Average Efficiency: 80% Min.Energy Level VI is available
Ripple and Noise(Max): 120mV p-p(adjustable)
Turn on delay time: 3 second Max.at 115Vac input and output Max.load.
Rise time: 40 mS Max.at 115Vac input and output Max load.
Hold up time: 5 mS Min.at 115Vac input and output Max.Load



Dimension: 114*50*30mm

DC cable:1.2M/1.5M/1.8M or more customizable

DC connector:5.5*2.1,5.5*2.5 or more customizable

Environmental Requirements



MTBF: MIL-HDBK-217F , Full load, 25 ℃, more than 50000 Hrs
Operating Temperature: 0℃ to 40℃,Full load, Normal operation.
Storage Temperature: -20℃ to 80℃ with shel
Relative Humidity: 5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating



Why choose our Power Adapter Supply

1> 12-year experience Factory directly sale provide ODM and OEM
2> 100% full-load burning test,2-years warranty
3> Protection: short-circuit, over-voltage, over-current, over-heat
4> Certifications: FCC,UL,CE,CB,CCC,SAA,GS,PSE,KC,ISO 9001 Class2 RoHS
5> Free samples: 3-5 days delivery,Lead time:15-20 days
6> Meet energy standard: CEC/ERP
7> High efficiency and environmental protection
8> Surface cosiness,small size and convenient carrying
9> Low cost,high riliablity and all cased are covered by ultrasonic
10> Meet safety standard: IEC/EN60950, IEC/EN60065
11> MTBF: meet MIL-HDBK-217F over 50k hours full load 25°C



Certification:

FCC,NRTL,TUV/GS,CE, CCC, SAA and ROHS

AC cable:2Pin or 3pin US EU AU CN UK and more plug AC cable optional

48W Universal AC DC Power Adapter , 50-60hz 24V 2A AC To DC Power Supply Adapter  0



DC cable: 1.2/1.5/1.8M and more customized
DC connector: 5.5*2.1*10mm, 5.5*2.5*10mm customized
