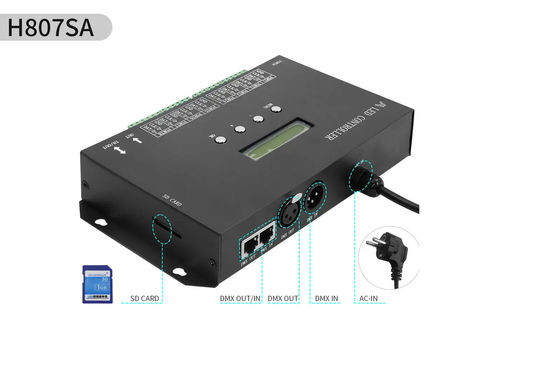

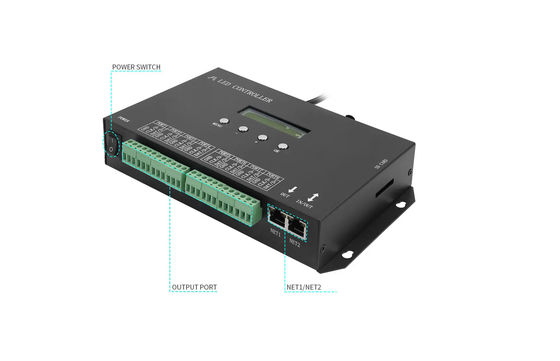

DMX512 Programable SPI Led Controller H807SA 8192Pixels For DMX512 WS2811 WS2812B WS2815 APA102 Led Strip
Led Controller H807SA Introduction,
H806SA has 8 outputs, supports maximum 8192 pixels, it Support Art-Net protocol
and can work with DMX console or set address for DMX chips .H807SA also can add or
delete DAT files through the LAN.
Supported Driver Chips,
DMX512,HDMX,DMX512_RDM,APA102,APA102-65536,WS2801,WS2811,
WS2812,WS2813,TM1812,TM1809,TM1804,TM1923,TM1934,TM1925D,TM1926D,
TM1803,TM1814,TM1913,TM1914,TM1926,UCSUCS1903,UCS1909,UCS1912,
UCS2903,UCS2909,UCS2912,UCS8904,UCS5603,SK9816,SK6812,SM16716,
SM16703,SM16709,SM16712,SM16704,LPD6803,LPD8806,LPD1882,LPD1889,
LPD1883,INK1003,APA104,P943,LC8812,GW6205,QED3110,D9866E,D9866B,
D9865C,D9865E,D9865F,D9864B,D9864C etc

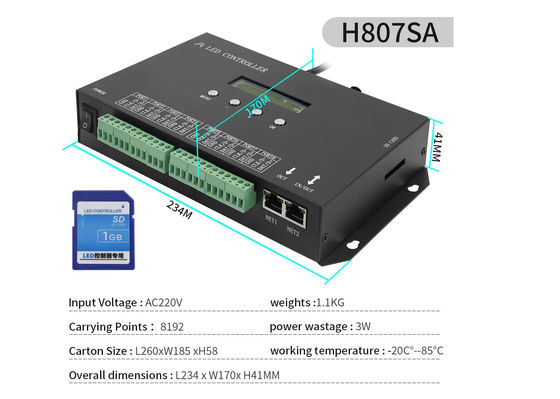

Parameters of H807SA,
| Product Name |
H807SA Led Controller |
| Pixel count |
8192 |
| Weight(kg) |
1.2 |
| Support ic |
DMX512, HDMX, APA102, APA102-65536, WS2801, WS2811, WS2812, WS2812, WS2813, TM1812, TM1809, TM1804, TM1923, TM1934, TM1925D,
TM1926D, TM1803, TM1814, TM1913, TM1914, TM1926, UCSUCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, UCS8904, UCS5603,
UCS9812, UCS2603, SK9816, SK6816 12. SM16716, SM16703, SM16709, SM16712, SM16704 SM16714, LPD6803, LPD8806, LPD1882, LPD1889,
LPD1883, INK1003, APA104, P943, LC8812, GW6205, QED3110, D9866E, D9866B, D9865C, D9865E, D9865F, D9864B, D9864C, MBI6023, MBI6024,
ADT6610, TLC5971, JCS0104, etc. |
| Rated voltage |
DC5-24V |
| Maximum load power |
8192Pixels |
Product details ,
