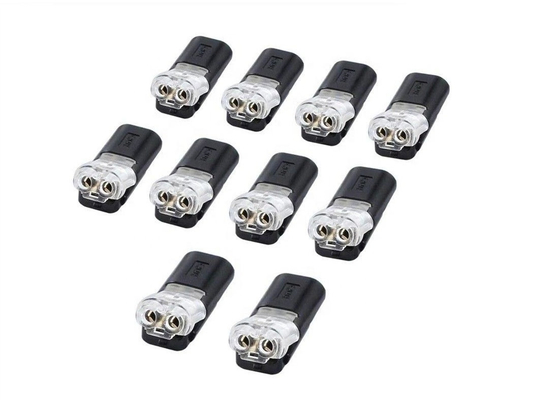

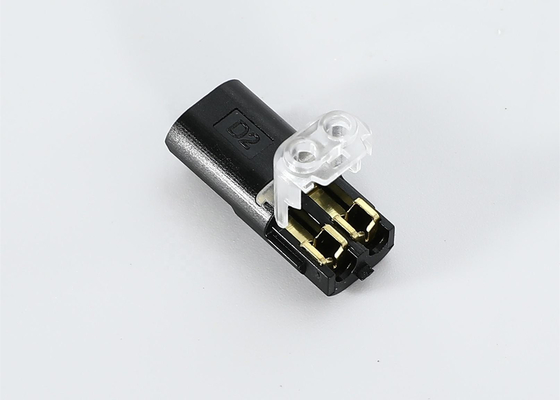

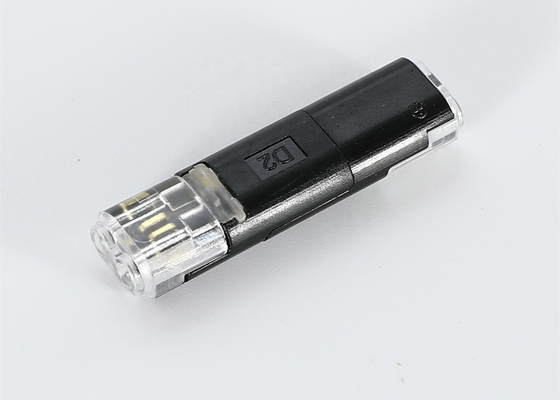

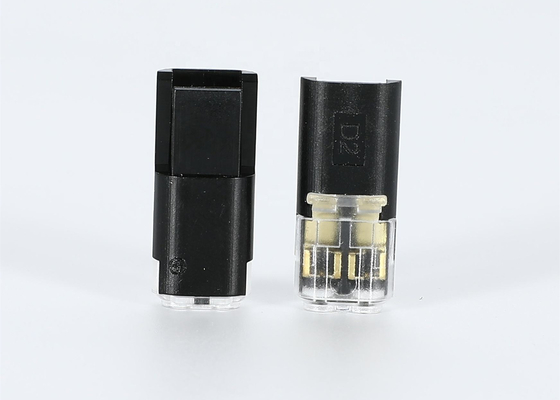

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors

Large Image : LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Phenson Lighting
Certification:	CE/ROHS
Model Number:	D2 connector

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	11.5X9X6.5 cm
Delivery Time:	3-5 days
Payment Terms:	Western Union, T/T,Paypal

Contact Now

Detailed Product Description

Housing Material:	PC, Copper	Wire Cross Section:	18-22AWG
Wire Gauge:	0.35mm²-0.75mm²	Application:	Exhibition Lighting City Lighting Hotel Lighting
Model Number:	D2 Quick Splice Wire Connector	Lead Time:	1-3days
Brand:	Phenson	Color:	Black

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors

Product Specification,

Product Name:	D2 Quick Connector	Material:	Polycarbonate + Copper
Rated Voltage:	<300V	Rated Current:	<10A
Wire Connection Range:	Soft Wire Only	Operating Temperature:	-10°C to 45°C
Wire Cross-section:	0.3-0.75mm²	Wire Diameter:	1.6-2.1mm

The main features for the wire terminal connector (DIY Electrical Connection Solution)

1.Tool-Simple Assembly

Easily crimp wires using only pliers—no wire strippers or electrical tape required.

2.Flexible Wire Length

Eliminates the constraints of pre-fixed connectors (e.g., DC/JST/pin connectors), allowing custom wire lengths to fit your project layout.

3.Plug-and-Play Design

Enables quick disconnection for maintenance or equipment replacement without rewiring.

4.Universal Application

Ideal for DIY electrical setups, empowering users to focus on equipment placement rather than wire length limitations.

Application:

Custom electronics projects, prototyping, and repairs where adjustable wiring is critical.

The drawing of D2 connector ,

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors 0

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors 1

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors 2

Workable wire type :18-22AWG

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors 3

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors 4

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors 5
