K-8000C Programmable Magic Color Controller Full Color Control Via DMX/SPI With Built-In Coding Function For Light Control

K-8000C Programmable Magic Color Controller Full Color Control Via DMX/SPI With Built-In Coding Function For Light Control

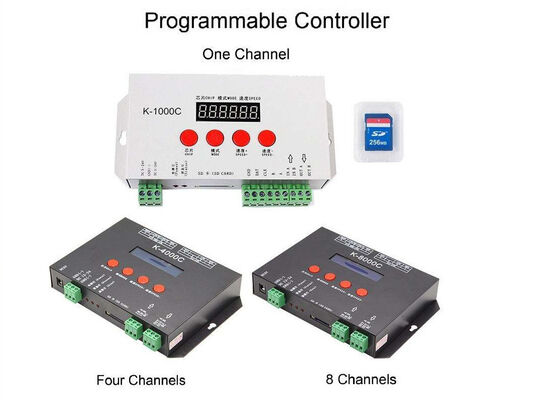

Features of K-8000C system:

1. Support 32-65536 level grayscale, correcting with software Gamma.
2. Support various point, line and area light sources, various rules and special-shaped processing.
3. Support 8 output ports, each can carry a maximum of 512/1024 lamps (DMX lamps with a maximum of 512 pixels
take three channels as an example).
4. The play content can be stored in SD card, which can store up to 32 effect files. The SD card capacity supports
128MB-32GB.
5. The controller can be used alone or in cascade. The cascade adopts the photoelectric isolation method, featuring
anti-interference and better stability. The cascade distance between two controllers can reach
150m by using pure copper power cord of 0.5 mm2

6. The controller with a loaded chip can be locked in the software with the loaded IC, or can be not locked and adjust
the controller's "CHIP" button to select the loaded IC, which is more flexible and convenient.

7. The IC controller for DMX lamps has its own address writing function; in addition, with our 2016 LedEdit-K V3.26
software or above version, you can set the one-key address writing function.

8. Support 4-channel (RGBW) pixels or single-channel pixels for loading lamps.

9. The built-in effect of the controller supports three channels (RGB) and four channels (RGBW).

10. The controller supports MODBUS third-party control.

11. Support enhanced TTL and 485 differential (DMX) signal output.

12. The controller has 22 test effects and DMX512 channel test function.

Note: 1. The speed of 512 pixels of lamps on the controller can reach 30 frames/second, the speed of 768 pixels can reach 25
frames/second, and the speed of 1024 pixels can reach 22 frames/second
(The above parameters take the IC data of 1903 protocol as an example, and the data may be different for different ICs)
2. A maximum of 512 pixels of international standard DMX512 (1990 protocol) can be loaded. When the load is the
international standard 170 pixels, the speed can reach 30 frames/second, the speed of 340 pixels is about 20 frames/second, and the speed of 512 pixels is about 12 frames/second. 3. If timing (holidays) play, Beidou WiFi synchronization and console channel distributor functions are required, please contact the sales personnel or the technical support personnel for details

Product Paramenters

1. The input voltage is DC5V or DC 12-24V input.
2. A maximum of 8192 ICs can be set.
3. SD self-programming change mode.
4. Net weight 0.8Kg with outer packaging; SD card*1; carton*1) See specifications for details
5. The output is connected in two ways: one is the terminal method; second is the network port connection.
6. Offline use, 8 ports output, each port with 512/1024 lights;
7. The content to be played is stored in the SD card, which can be played by a single unit or multiple units can be cascaded.

Support chip (generally select K-8000-RGB):

. Support chip (generally select K-8000-RGB):
00: UCS19**,UCS29**,TM18*,SM167**,WS28**,GS82**,SK6812 (support up toVersion V1.7 1024*8=8192 pixels)
01: SM16716,16726 (support up to 1024*8=8192 pixels)
02: P9813 (support up to 1024*8=8192 pixels)
03: LPD6803 (support up to 1024*8=8192 pixels)
04: LX1003,1203 (support up to 1024*8=8192 pixels)
05: WS2801 (support up to 1024*8=8192 pixels)
06: LPD1886 (support up to 1024*8=8192 pixels)
07: TM1913 (support up to 1024*8=8192 pixels)
08: TM1914 (support up to 1024*8=8192 pixels)
09: P9883,P9823 (support up to 1024*8=8192 pixels)
10: DMX (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560 pixels)
11: DMX 500K (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560
pixels)
12: DMX 250K-CZF (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560
pixels)
13: DMX 500K-CZF (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560
pixels)
14: UCS5603-Test (support up to 1024*8=8192 pixels)
15: UCS5603A (support up to 1024*8=8192 pixels)
16: UCS5603B (support up to 1024*8=8192 pixels)
17: TM1814 (support up to 1024*8=8192 pixels)
18: INK1003 (support up to 1024*8=8192 pixels)
19: APA102 (support up to 1024*8=8192 pixels)
20: UCS8904 (support up to 1024*8=8192 pixels)
21: SM16714 (support up to 1024*8=8192 pixels)
22: SM16813 (support up to 1024*8=8192 pixels)
23: GS8512 (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560 pixels)
24:QED3110 (NA)
25: WS2816 (support up to 1024*8=8192 pixels)
26: UCS9812 (support up to 1024*8=8192 pixels)
27: SM16803 (support up to 1024*8=8192 pixels)
28: SM16804 (support up to 1024*8=8192 pixels)
29: UCS2603-T (support up to 1024*8=8192 pixels)
30: UCS2603 (support up to 1024*8=8192 pixels)
Note: 1. Lamps of RGBW four channels should select K-8000-RGBW, and of more than four channels should
select K-8000-RGBWYA. 2. Lamps of single channel should select K-8000-W. At this time, one channel represents one pixel, and the
software effect is white light.

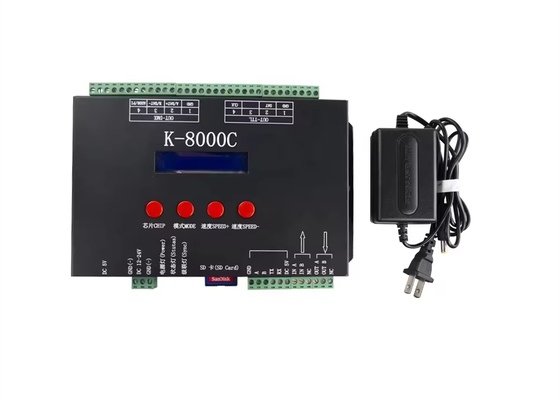

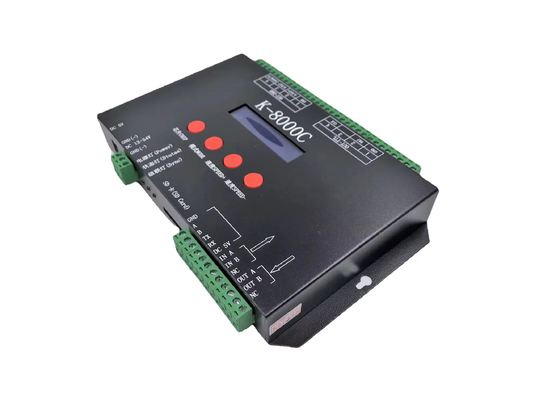

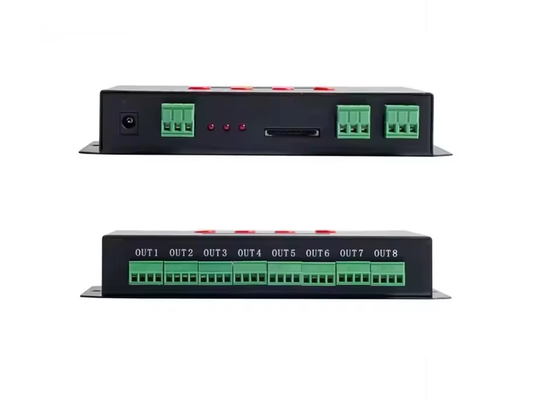

K-8000C Controller Image:
